In Stock!

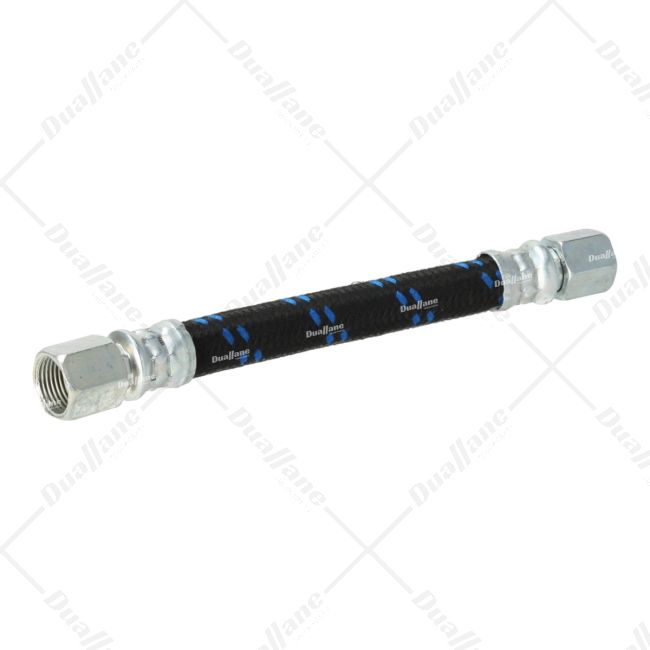

Freightliner Air Compressor Wire Braided Discharge Line | A12-23236-010

SKU
A12-23236-010
MPN
A12-23236-010
$29.83

Free Shipping on qualifying orders of $150 or more.Details

Have a Question for Our Team?

Our Customer Service team is ready to help. Call 1.877.DL.ORDER or Monday - Friday 8 AM - 4:30 PM ET

Description

The A12-23236-010 represents a wire braided discharge line for Freightliner Air Compressors. Its purpose is to transport compressed air from the compressor to its intended destination. The overall length of the line measures 10 inches. The inner diameter of the hose is 0.50 inches and it spans a length of 7.56 inches. On the other hand, the outer diameter of the hose measures 0.83 inches, with a wall thickness of 0.17 inches. This particular discharge line comes equipped with end fittings featuring a thread size of 7/8 14 inches, making it compatible with various air compressor systems. Its color code is black and it has been constructed using materials suitable for operating within a wide temperature range ( -40 to +311 degrees Fahrenheit). With a maximum working pressure rated at 250 psi, this line ensures reliable performance even during high-pressure situations thanks to its burst pressure capability reaching up to 1000 psi. The hose itself has been crafted using EPDM (Synthetic Rubber), while the end fittings consist of steel nuts and brass nipples for enhanced durability and secure connections. Ultimately, this component plays an indispensable role in air compressor systems found in Freightliner vehicles.

WarningWARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

  • Overall Length: 10 in
  • Hose Inner Diameter: 0.50 in
  • Hose Length: 7.56 in
  • Hose Outer Diameter: 0.83 in
  • Hose Wall Thickness: 0.17 in
  • End 1 Thread Size: 7/8-14 in
  • End 2 Thread Size: 7/8-14 in
  • Standard Hose Size: #10
  • Color: Black
  • End 1 Fitting Type: Female Swivel Straight Fitting
  • End 2 Fitting Type: Female Swivel Straight Fitting
  • Nut Material: Steel
  • Hose Material: EPDM (Synthetic Rubber)
  • Nipple Material: Brass
  • Working Temperature Range: -40 to +311 Deg. F
  • Maximum Working Pressure: 250 psi
  • Working Pressure: 250 psi
  • Burst Pressure: 1000 psi
  • Minimum Burst Pressure: 1000 psi
More Information
Manufacturer Freightliner
Shipping Length (in) 12.00
Shipping Width (in) 7.00
Shipping Height (in) 4.00
Returnable Yes
Weight (lb) 0.34
Core Exchange No
