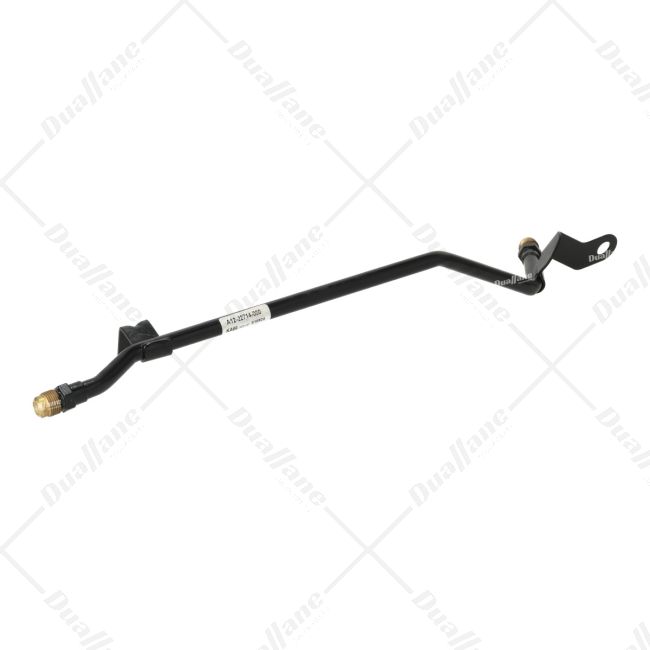

Freightliner Air Compressor Metal In Rail Discharge Line | A12-22714-000

Description

The A12-22714-000 is a specialized air discharge line positioned on the left-hand side of the heavy-duty engine platform. Its main purpose is to transport and release compressed air in a specific area as mentioned. This line plays a crucial role in managing compressed air safely and efficiently across various parts of the vehicle's engine platform. The designation "in rail" indicates its specific location within the structure of the engine platform. Designed to withstand the demands of heavy-duty applications, the A12-22714-000 significantly contributes to enhancing the overall performance and functionality of the vehicle's air system.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Overall Length: 25.90 in
• Tube Outer Diameter: 0.63 in
• Tube Wall Thickness: 0.05 in
• Tube Inner Diameter: 0.53 in
• End 1 Thread Size: 7/8-14 in
• End 1 Flare Fit Angle: 45 deg
• End 2 Thread Size: 7/8-14 in
• End 2 Flare Fit Angle: 45 deg
• Finish: Zinc Cobalt Coated
• End 1 Fitting Type: Male Connector
• End 2 Fitting Type: Male Connector
• Nut Material: Brass
• Tube Material: Steel
• Nipple Material: Brass
