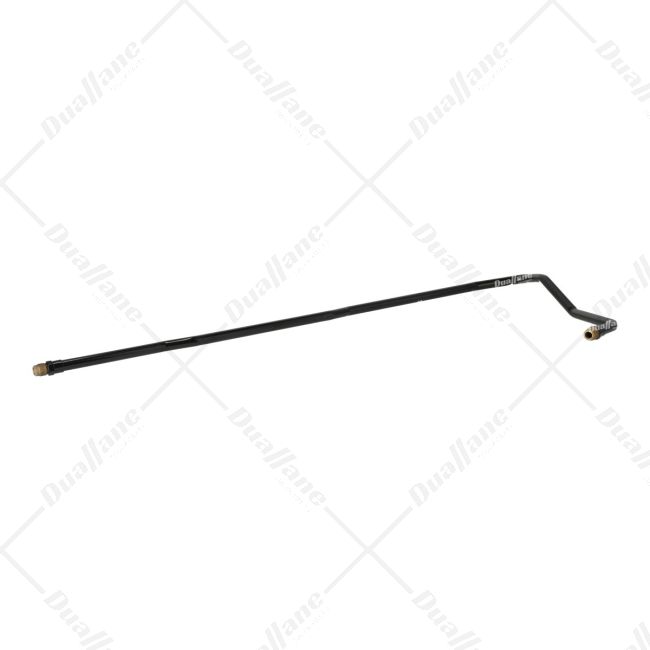

Freightliner Air Compressor Metal Discharge Line | A12-29038-000

Description

The A12-29038-000 is a line designed for air discharge, specifically intended for use with a cooler in the context of a heavy-duty engine platform known as P4. This line is used to facilitate the release of air in a cooling system, allowing for efficient temperature regulation within the heavy-duty engine. The part number A12-29038-000 serves as a unique identifier for this particular air discharge line, making it easier to identify and use in applications related to cooling systems for heavy-duty engines on the P4 platform.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Overall Length: 57.73 in
• Tube Outer Diameter: 0.75 in
• Tube Wall Thickness: 0.07 in
• Center To Center Length: 27.65 in
• Tube Inner Diameter: 0.61 in
• End 1 Thread Size: 7/8-14 in
• End 1 Flare Fit Angle: 45 deg
• End 2 Thread Size: 7/8-14 in
• End 2 Flare Fit Angle: 45 deg
• Finish: Zinc Plated
• End 1 Fitting Type: Male Connector
• End 2 Fitting Type: Male Connector
• Nut Material: Brass
• Tube Material: Steel
