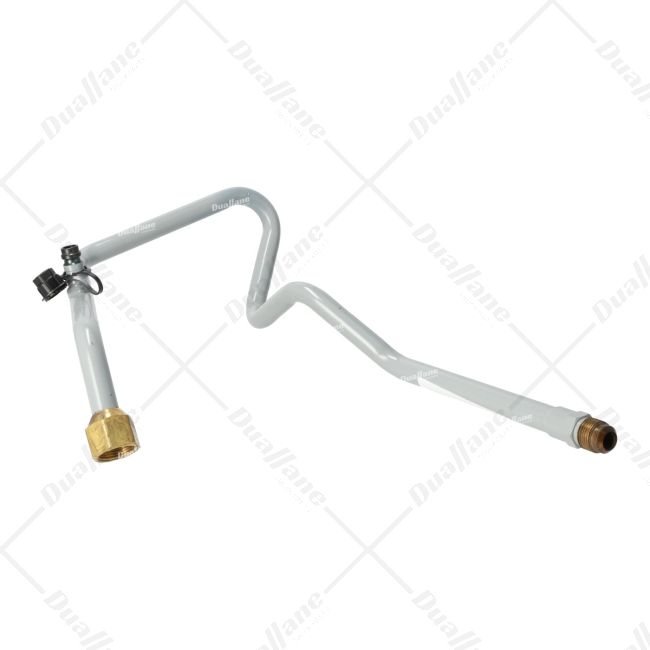

Freightliner Air Compressor Metal Discharge Line | A12-21913-000

Description

The A12-21913-000 serves as a metallic conduit specifically designed for releasing air in different applications. Its purpose is to transport compressed air from the compressor to various components within the air system, including pneumatic elements and air tanks. Constructed from robust materials, this metal line can withstand high levels of pressure and temperature, ensuring dependable and effective operation. It is essential to carefully install and maintain the metal line to prevent any potential leaks or failures, thereby guaranteeing optimal performance of the entire air discharge system.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Overall Length: 40.90 in
• Tube Outer Diameter: 0.75 in
• Tube Wall Thickness: 0.07 in
• Tube Inner Diameter: 0.61 in
• End 1 Thread Size: 1 1/16-14 in
• End 1 Flare Fit Angle: 45 deg
• End 2 Thread Size: 7/8-14 in
• End 2 Flare Fit Angle: 45 deg
• Finish: Zinc Cobalt Coated
• End 1 Fitting Type: Brass Short Nut
• End 2 Fitting Type: Half Union Fitting
• Nut Material: Brass
• Tube Material: Steel
• Nipple Material: Brass
