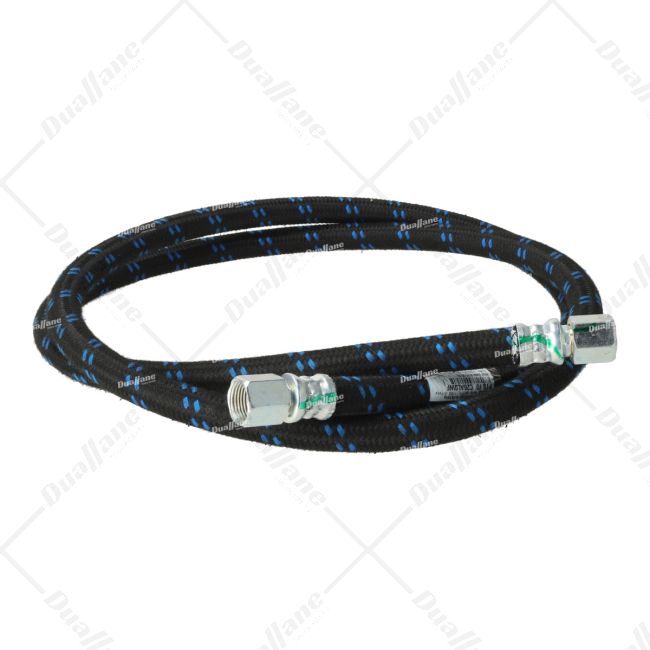

Freightliner Air Compressor Discharge Line 96 in | A12-23236-096

Description

The A12-23236-096 serves as an air discharge line specifically designed for compressors. Its construction, which includes wire braiding, indicates that it is capable of withstanding high-pressure situations while also providing enhanced strength and durability. This line plays a crucial role in the proper functioning of air-related systems such as air brakes or air suspension, as it carries compressed air from the compressor to other components within the air system. Thanks to its wire braided design, this line can effectively handle pressure without any leaks or damages, making it a reliable component within the vehicle or equipment's air system.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Overall Length: 96 in
• Hose Inner Diameter: 0.50 in
• Hose Length: 93.56 in
• Hose Outer Diameter: 0.83 in
• Hose Wall Thickness: 0.17 in
• End 1 Thread Size: 7/8-14 in
• End 2 Thread Size: 7/8-14 in
• Standard Hose Size: #10
• Color: Black
• End 1 Fitting Type: Female Swivel Straight Fitting
• End 2 Fitting Type: Female Swivel Straight Fitting
• Nut Material: Steel
• Hose Material: EPDM (Synthetic Rubber)
• Nipple Material: Brass
• Working Temperature Range: -40 to +311 Deg. F
• Maximum Working Pressure: 250 psi
• Working Pressure: 250 psi
• Burst Pressure: 1000 psi
• Minimum Burst Pressure: 1000 psi
