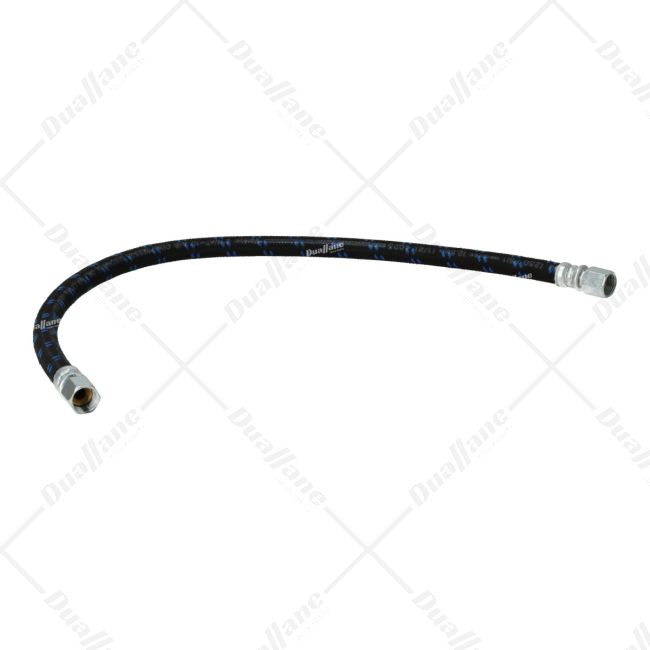

Freightliner Air Compressor Discharge Line 38 in | A12-23236-038

Description

The A12-23236-038 is known as an air discharge line designed specifically for compressors. It features a wire braided structure that enhances its durability and strength, making it suitable for applications involving high levels of pressure. This air discharge line plays a crucial role in transporting compressed air from the compressor to various components within the system, including air tanks, air brakes and other pneumatic elements. The wire braided construction effectively prevents any potential bursting or leakage under pressure, ensuring the safe and reliable operation of the entire air system in vehicles or equipment where it is utilized.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Overall Length: 38 in
• Hose Inner Diameter: 0.50 in
• Hose Length: 35.56 in
• Hose Outer Diameter: 0.83 in
• Hose Wall Thickness: 0.17 in
• End 1 Thread Size: 7/8-14 in
• End 2 Thread Size: 7/8-14 in
• Standard Hose Size: #10
• Color: Black
• End 1 Fitting Type: Female Swivel Straight Fitting
• End 2 Fitting Type: Female Swivel Straight Fitting
• Nut Material: Steel
• Hose Material: EPDM (Synthetic Rubber)
• Nipple Material: Brass
• Working Temperature Range: -40 to +311 Deg. F
• Maximum Working Pressure: 250 psi
• Working Pressure: 250 psi
• Burst Pressure: 1000 psi
• Minimum Burst Pressure: 1000 psi
