Freightliner Air Compressor Discharge Line 28 in | A12-25822-028

Description

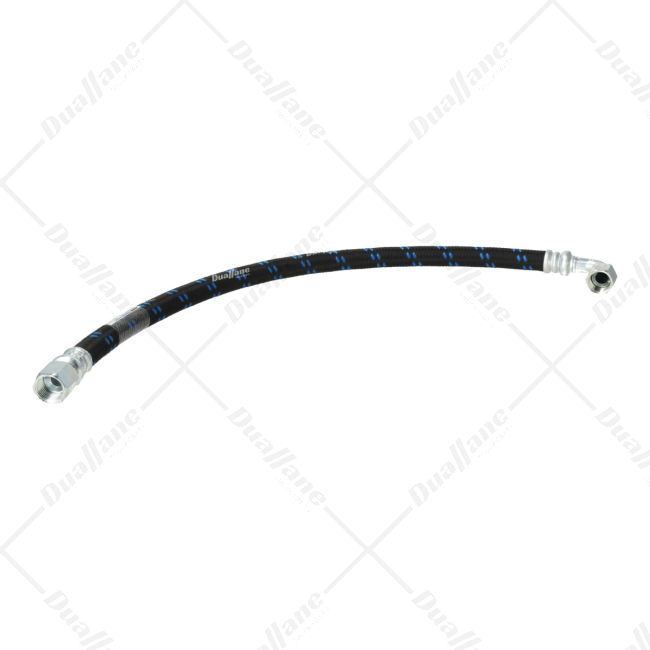

The A12-25822-028 is a specific air discharge line designed for the compressor featuring a 90-degree bend. It is constructed using 214HT material, which is capable of handling high temperatures effectively. This line plays a critical role in transporting compressed air from the compressor to various components within the air system. Regular maintenance and inspection are crucial to ensure the line's proper functioning and to prevent potential issues associated with heat-related wear or failure.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Overall Length: 28 in
• Hose Inner Diameter: 0.50 in
• Hose Length: 25.50 in
• Hose Outer Diameter: 0.83 in
• Hose Wall Thickness: 0.17 in
• End 1 Thread Size: 7/8-14 in
• End 1 Flare Fit Angle: 45 deg
• End 1 Elbow Fitting Angle: 90 deg
• End 2 Thread Size: 7/8-14 in
• Standard Hose Size: #10
• Color: Black
• End 1 Fitting Type: Female Swivel Elbow Fitting
• End 2 Fitting Type: Female Swivel Straight Fitting
• Nut Material: Steel
• Hose Material: EPDM (Synthetic Rubber)
• Nipple Material: Steel
• Working Temperature Range: -40 to +311 Deg. F
• Maximum Working Pressure: 250 psi
• Working Pressure: 250 psi
• Minimum Burst Pressure: 1000 psi
