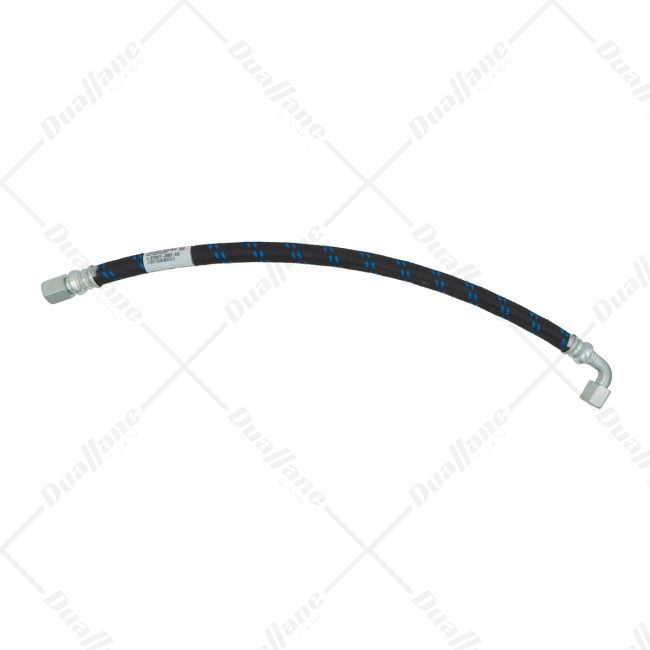

Freightliner Air Compressor Discharge Line 26 in | A12-25822-026

Description

The A12-25822-026 is an air discharge line designed for the compressor with a 90-degree bend. It is made using 214HT material, which is suitable for handling high temperatures. This line is essential for carrying compressed air from the compressor to the air tanks or other components in the air system. Regular maintenance and inspection are important to ensure proper functioning and prevent potential issues related to heat-related deterioration or failure.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Overall Length: 26 in
• Hose Inner Diameter: 0.50 in
• Hose Length: 23.50 in
• Hose Outer Diameter: 0.83 in
• Hose Wall Thickness: 0.17 in
• End 1 Thread Size: 7/8-14 in
• End 1 Flare Fit Angle: 45 deg
• End 1 Elbow Fitting Angle: 90 deg
• End 2 Thread Size: 7/8-14 in
• Standard Hose Size: #10
• Color: Black
• End 1 Fitting Type: Female Swivel Elbow Fitting
• End 2 Fitting Type: Female Swivel Straight Fitting
• Nut Material: Steel
• Hose Material: EPDM (Synthetic Rubber)
• Nipple Material: Steel
• Working Temperature Range: -40 to +311 Deg. F
• Maximum Working Pressure: 250 psi
• Working Pressure: 250 psi
• Minimum Burst Pressure: 1000 psi
