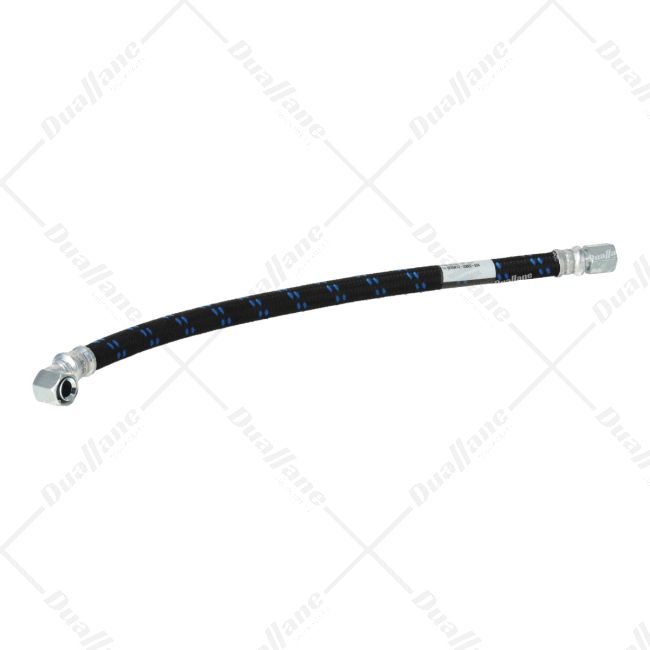

Freightliner Air Compressor Discharge Line 24 in | A12-25822-024

Description

The A12-25822-024 is an air discharge line designed with a 90-degree bend for high-temperature applications. It is used to carry compressed air from the compressor to the air tanks or other components in the air system. The 214HT refers to the specific type of hose or material used suitable for handling high temperatures. It is crucial to use the correct type of line for the application and ensure regular maintenance and inspection to ensure proper system functioning and prevent issues regarding heat-related deterioration or failure.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Overall Length: 24 in
• Hose Inner Diameter: 0.50 in
• Hose Length: 21.50 in
• Hose Outer Diameter: 0.83 in
• Hose Wall Thickness: 0.17 in
• End 1 Thread Size: 7/8-14 in
• End 1 Flare Fit Angle: 45 deg
• End 1 Elbow Fitting Angle: 90 deg
• End 2 Thread Size: 7/8-14 in
• Standard Hose Size: #10
• Color: Black
• End 1 Fitting Type: Female Swivel Straight Fitting
• End 2 Fitting Type: Female Swivel Straight Fitting
• Nut Material: Steel
• Hose Material: EPDM (Synthetic Rubber)
• Nipple Material: Steel
• Working Temperature Range: -40 to +311 Deg. F
• Maximum Working Pressure: 250 psi
• Working Pressure: 250 psi
• Minimum Burst Pressure: 1000 psi
