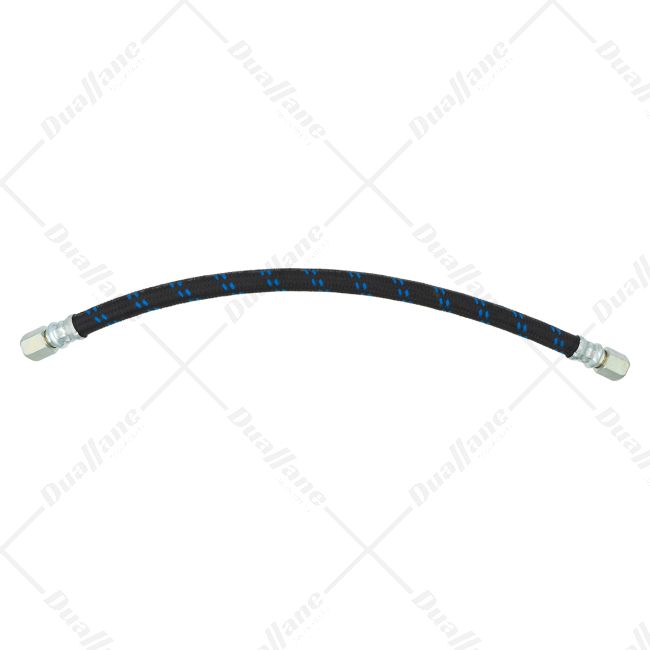

Freightliner Air Compressor Discharge Line 24 in | A12-23236-024

Description

The FL A12-23236-024 is a Freightliner Air Compressor Discharge Line that spans a length of 24 inches. This particular component plays a crucial role within the air compression system of Freightliner trucks, as it efficiently transports compressed air to different parts of the vehicle's pneumatic system. Its primary purpose is to maintain optimal air pressure and ensure the smooth operation of essential systems like brakes and suspension. The specified length of 24 inches is specifically tailored to meet your vehicle's configuration requirements. Rest assured, this discharge line has been intricately designed to deliver top-notch performance and longevity, meeting the demanding standards set for heavy-duty trucking applications.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Overall Length: 24 in
• Hose Inner Diameter: 0.50 in
• Hose Length: 21.56 in
• Hose Outer Diameter: 0.83 in
• Hose Wall Thickness: 0.17 in
• End 1 Thread Size: 7/8-14 in
• End 2 Thread Size: 7/8-14 in
• Standard Hose Size: #10
• Color: Black
• End 1 Fitting Type: Female Swivel Straight Fitting
• End 2 Fitting Type: Female Swivel Straight Fitting
• Nut Material: Steel
• Hose Material: EPDM (Synthetic Rubber)
• Nipple Material: Brass
• Working Temperature Range: -40 to +311 Deg. F
• Maximum Working Pressure: 250 psi
• Working Pressure: 250 psi
• Burst Pressure: 1000 psi
• Minimum Burst Pressure: 1000 psi
