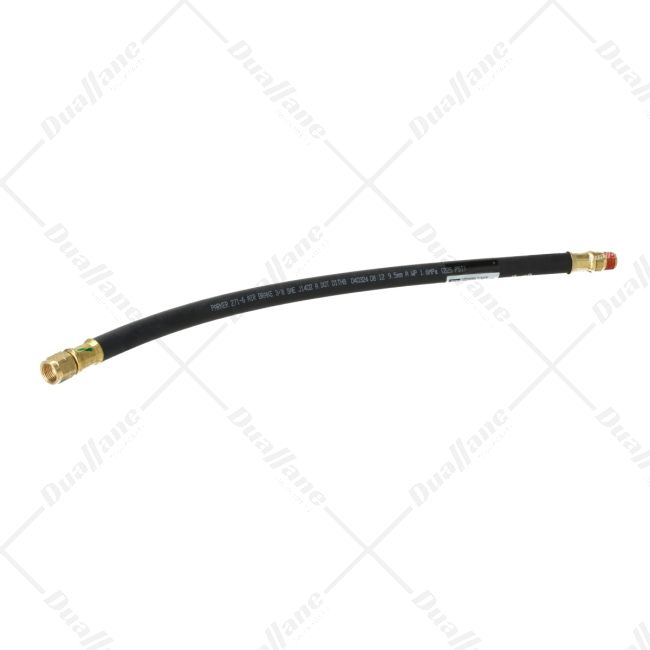

Freightliner Air Brake 22 in. Air Line | 12-20823-022

Description

The component labeled as number 12-20823-022 is a specially crafted hose that comes in a #6 size and is constructed with fibers braided together. It has a 06 male pipe thread (MPT) on one end and a 06 female pipe thread (FPT) on the opposite end. This particular hose can be used for various applications where fluid needs to be transferred using threaded fittings. The design of the hose, with its braided fibers, offers both flexibility and strength, making it suitable for handling different fluid pressures and flow rates. To ensure the best performance and durability of this hose in its intended use, proper installation and regular maintenance are crucial.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Thickness: 0.19 in
• Outer Diameter: 0.75 in
• Inner Diameter: 0.38 in
• Wall Thickness: 0.19 in
• End 1 Fitting Thread Size: 3/4-16 in
• End 2 Fitting Thread Size: 3/4-16 in
• Standard Hose Size: #6
• Working Temperature Range: -46 to +100 Deg.C
• Color: Black
• Material: Synthetic Rubber
• End 1 Fitting Type: Female Swivel Nut
• End 2 Fitting Type: Female Swivel Nut
• Burst Pressure: 900 psi
