Freightliner A/C Hose Assembly | A22-66834-012

Description

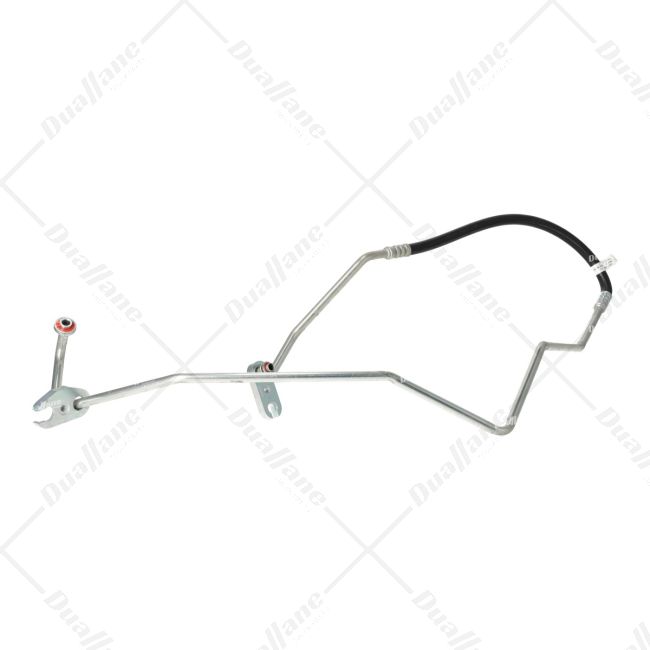

The A22-66834-012 is an A/C hose designed for MBE4000 SAN 112 and 120 systems. It features an inner diameter of 0.41 inches, a length of 20.67 inches and an outer diameter of 0.73 inches. The center-to-center length of the hose is 62.01 inches with a wall thickness of 0.16 inches. The hose is equipped with end fittings with angles of 132 degrees and 90 degrees at each end. Both ends have a standard fitting size of #8. The hose is designed to withstand a burst pressure of up to 1000 psi.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Hose Inner Diameter: 0.41 in
• Hose Length: 20.67 in
• Hose Outer Diameter: 0.73 in
• Center To Center Length: 62.01 in
• Hose Wall Thickness: 0.16 in
• End 1 Fitting Angle: 132 deg
• End 2 Fitting Angle: 90 deg
• Standard End 1 Fitting Size: #8
• Standard Hose Size: #8
• Burst Pressure: 1000 psi
