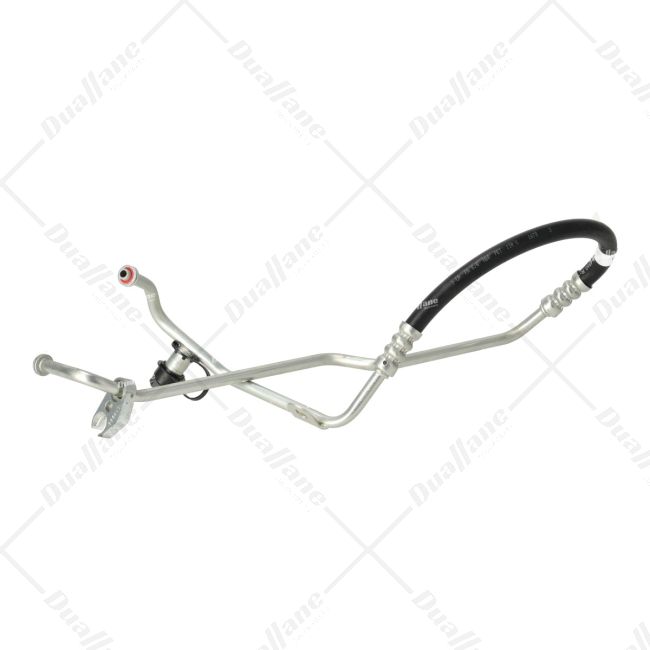

Freightliner A/C Hose Assembly | A22-59999-003
Have a Question for Our Team?
Description
The A22-59999-003 is a hose assembly specifically designed for air conditioning systems. Its purpose is to connect from the receiver dryer to the junction block, using a #6 fitting. On both ends of the hose, you will find Stat-O-Seal fittings made of a combination of rubber and steel retainers. The hoses themselves are built with steel tubes that have a wall thickness of 0.05 inches. Tube 1 has an inner diameter of 0.28 inches and an outer diameter of 0.38 inches, while Tube 2 shares the same inner and outer diameters as Tube 1. In terms of length, this particular hose measures approximately 13.78 inches long and can handle burst pressures up to 1250 psi, providing reliable performance for air conditioning applications that require resistance to high pressure.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Color: Yellow
- Finish: Zinc Plated
- End 1 Fitting Type: Stat-O-Seal
- End 2 Fitting Type: Stat-O-Seal
- End 1 Fitting Material: Rubber with Steel Retainer
- End 2 Fitting Material: Rubber with Steel Retainer
- Tube 1 Material: Steel
- Tube 2 Material: Steel
- Hose Inner Diameter: 0.88 in
- Hose Length: 13.78 in
- Tube 1 Wall Thickness: 0.05 in
- Tube 2 Inner Diameter: 0.28 in
- Tube 1 Outer Diameter: 0.38 in
- Tube 2 Wall Thickness: 0.05 in
- Tube 2 Outer Diameter: 0.38 in
- Tube 1 Inner Diameter: 0.28 in
- Standard End 2 Fitting Size: #6
- Standard End 1 Fitting Size: #6
- Standard Hose Size: #16
- Burst Pressure: 1250 psi
| OTHER | MEI 09-0671 |
|---|
| Manufacturer | Freightliner |
|---|---|
| Shipping Length (in) | 48.00 |
| Shipping Width (in) | 8.00 |
| Shipping Height (in) | 8.00 |
| Returnable | Yes |
| Weight (lb) | 2.50 |
| Core Exchange | No |
