Freightliner A/C Hose Assembly | A22-58556-001
Have a Question for Our Team?
Description

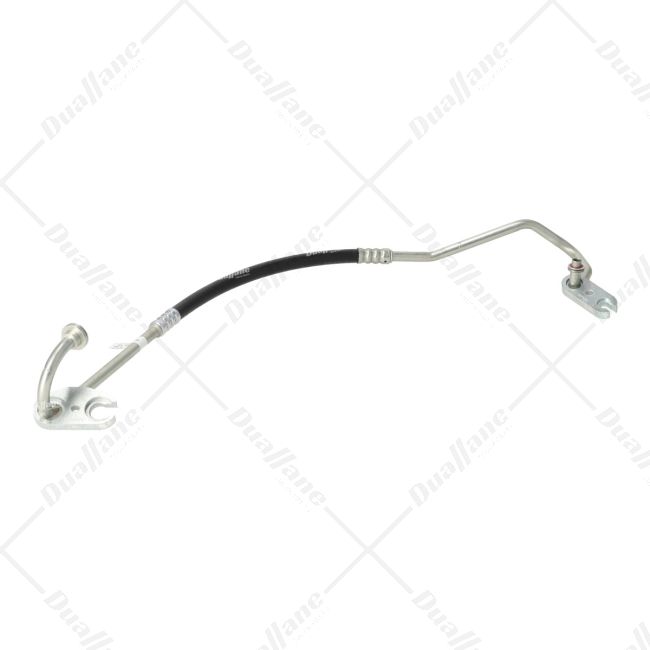

The A22-58556-001 is a hose assembly created specifically for air conditioning systems, designed to work seamlessly with #8 fittings. The construction of this assembly involves using nylon for the hose material, while the cover is made from a combination of elastomer and natural rubber. The hose assembly features retainer plate fittings at both ends. In terms of dimensions, the hose has an inner diameter of 0.41 inches, a length of 14.50 inches and an outer diameter of 0.73 inches. As for the tubes, they are crafted from steel and have respective inner and outer diameters of 0.40 inches and 0.50 inches for both tubes. It's worth noting that this assembly is engineered to endure a burst pressure up to 1250 psi.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- End 1 Fitting Type: Retainer Plate
- End 2 Fitting Type: Retainer Plate
- Hose Material: Nylon
- Cover Material: Elastomer and Natural Rubber
- Tube 1 Material: Steel
- Tube 2 Material: Steel
- Hose Inner Diameter: 0.41 in
- Hose Length: 14.50 in
- Hose Outer Diameter: 0.73 in
- Hose Wall Thickness: 0.16 in
- Tube 1 Wall Thickness: 0.05 in
- Tube 2 Inner Diameter: 0.40 in
- Tube 1 Outer Diameter: 0.50 in
- Tube 2 Wall Thickness: 0.05 in
- Tube 2 Outer Diameter: 0.50 in
- Tube 1 Inner Diameter: 0.40 in
- Standard End 2 Fitting Size: #8
- Standard End 1 Fitting Size: #8
- Standard Hose Size: #8
- Burst Pressure: 1250 psi
| OTHER | 683-1430, 09-0629, 7-T03047, 775-0629, A22-58556-001, A2258556001, PTAC09-0629, T3745 |
|---|
| Manufacturer | Freightliner |
|---|---|
| Shipping Length (in) | 28.00 |
| Shipping Width (in) | 24.00 |
| Shipping Height (in) | 14.00 |
| Returnable | Yes |
| Weight (lb) | 4.00 |
| Core Exchange | No |
