Freightliner A/C Hose Assembly | A22-58023-002

Description

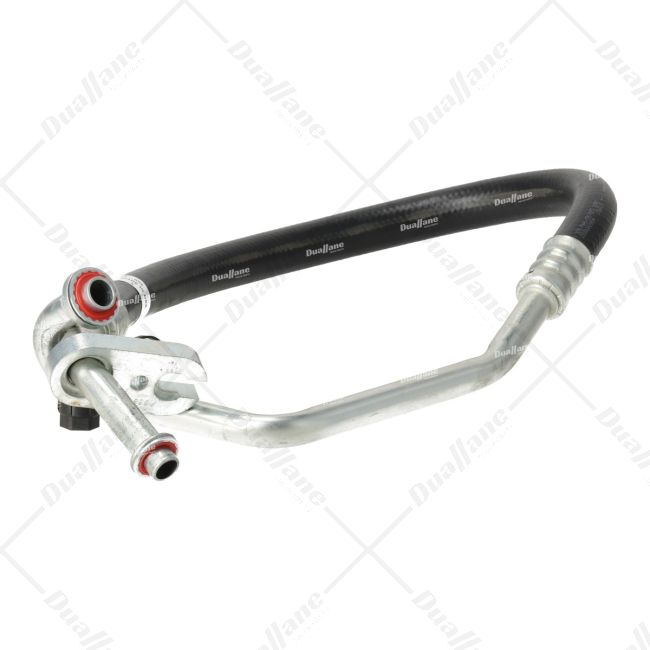

The A22-58023-002 is a hose assembly specifically designed for air conditioning (A/C) systems. It is constructed using nylon for the hose material, while the cover material consists of elastomer and natural rubber. The assembly features Stat-O-Seal fittings at both ends, which are composed of rubber with steel retainers. The hose itself has an inner diameter measuring 0.63 inches, a length of 21.85 inches and an outer diameter of 0.97 inches. Additionally, the hose has a wall thickness of 0.17 inches.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• End 1 Fitting Type: Stat-O-Seal
• End 2 Fitting Type: Stat-O-Seal
• Hose Material: Nylon
• Cover Material: Elastomer and Natural Rubber
• End 1 Fitting Material: Rubber with Steel Retainer
• End 2 Fitting Material: Rubber with Steel Retainer
• Tube 1 Material: Steel
• Tube 2 Material: Steel
• Hose Inner Diameter: 0.63 in
• Hose Length: 21.85 in
• Hose Outer Diameter: 0.97 in
• Hose Wall Thickness: 0.17 in
• Tube 1 Wall Thickness: 0.05 in
• Tube 2 Inner Diameter: 0.53 in
• Tube 1 Outer Diameter: 0.63 in
• Tube 2 Wall Thickness: 0.05 in
• Tube 2 Outer Diameter: 0.63 in
• Tube 1 Inner Diameter: 0.53 in
• Standard End 2 Fitting Size: #10
• Standard End 1 Fitting Size: #10
• Standard Hose Size: #12
• Burst Pressure: 1250 psi
