Freightliner A/C Hose Assembly | A22-57519-001
Have a Question for Our Team?
Description

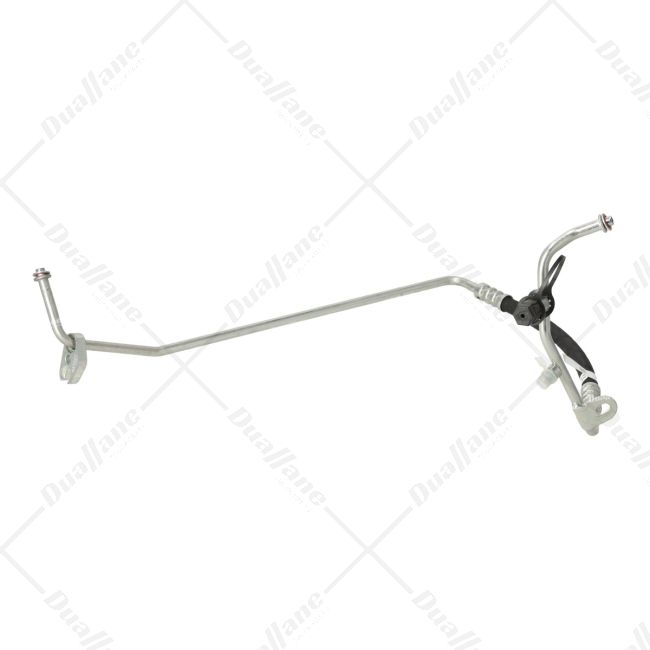

The A22-57519-001 is an air conditioning hose assembly specifically designed for #6 fittings. Its purpose is to connect to a junction block (JBLOCK) in the air conditioning system of FLX120 vehicles. This hose assembly is crafted using durable and flexible thermoplastic material. It features Stat-O-Seal fittings at both ends, which are made of rubber with steel retainers for secure connections. The inner diameter of tube 1 measures at 0.30 inches and the switch port thread size is M10 mm. This hose assembly utilizes standard #6 fitting size and hose size specifications. Designed to handle demanding conditions, this hose assembly has a burst pressure rating of up to 1250 psi, ensuring reliable performance within the air conditioning system.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Fitting Type: Stat-O-Seal
- Hose Material: Thermoplastic
- End 1 Fitting Material: Rubber with Steel Retainer
- End 2 Fitting Material: Rubber with Steel Retainer
- Tube 1 Material: Steel
- Tube 2 Material: Aluminum
- Hose Length: 11.94 in
- Tube Outer Diameter: 0.38 in
- Tube 1 Wall Thickness: 0.04 in
- Tube 2 Inner Diameter: 0.28 in
- Tube 2 Wall Thickness: 0.05 in
- Tube 1 Inner Diameter: 0.30 in
- Switch Port Thread Size: M10 mm
- Standard Fitting Size: #6
- Standard Hose Size: #6
- Burst Pressure: 1250 psi
| OTHER | 683-1504, 09-0652, 775-0652, A22-57519-001, A2257519001, 34-63640, PTAC09-0652, T3770 |
|---|
| Manufacturer | Freightliner |
|---|---|
| Shipping Length (in) | 28.00 |
| Shipping Width (in) | 24.00 |
| Shipping Height (in) | 14.00 |
| Returnable | Yes |
| Weight (lb) | 1.00 |
| Core Exchange | No |
