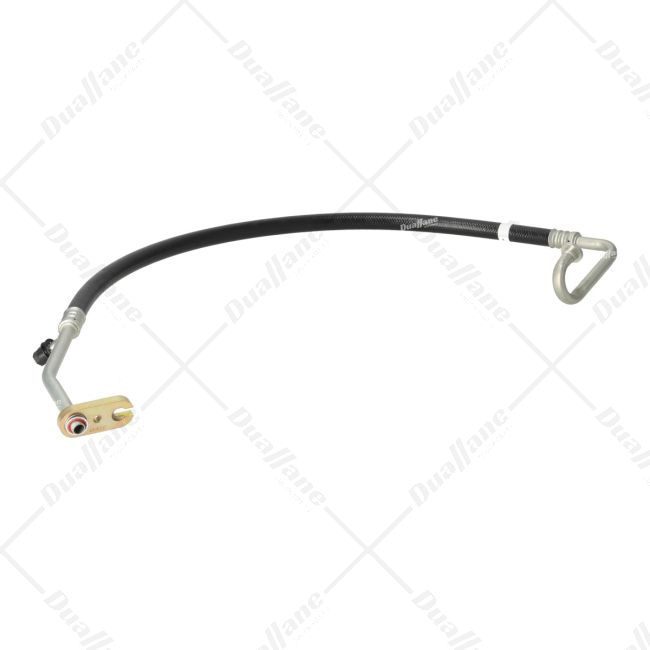

Freightliner A/C Hose Assembly | A22-52177-331

Description

The A22-52177-331 is an A/C hose assembly designed with nylon hose material steel fittings and tube and elastomer cover. It has an inner diameter of 0.63 in. and a length of 35.83 in., with a 90-degree angle on one end and a 30-degree angle on the other. Its burst pressure is rated at 1000 psi, indicating its durability under pressure fluctuations. This assembly is suitable for air conditioning systems and is designed to fit specific hose and fitting sizes.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• End 2 Fitting Type: Adapter
• Hose Material: Nylon
• Fitting Material: Steel
• Tube Material: Steel
• Cover Material: Elastomer
• Hose Inner Diameter: 0.63 in
• Hose Length: 35.83 in
• Hose Outer Diameter: 0.97 in
• Tube Outer Diameter: 0.63 in
• Tube Wall Thickness: 0.05 in
• Center To Center Length: 45.69 in
• Hose Wall Thickness: 0.17 in
• Tube Inner Diameter: 0.53 in
• End 1 Fitting Angle: 30 deg
• End 2 Fitting Angle: 90 deg
• Switch Port Thread Size: M12 mm
• Standard End 2 Fitting Size: #10
• Standard End 1 Fitting Size: #10/12
• Standard Hose Size: #12
• Burst Pressure: 1000 psi
