Freightliner A/C Hose Assembly | A22-52177-327

Description

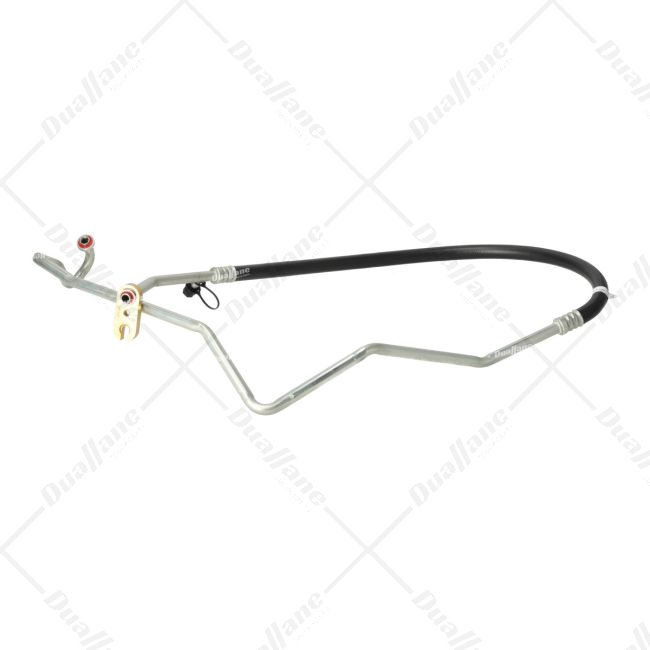

The A22-52177-327 is an A/C hose assembly designed for MBE4000 SAN and 120 models. Constructed with nylon hose material steel fittings and an elastomer cover, it features a 0.63 inch inner diameter, 35.87 inch length and 0.97 inch outer diameter. The hose assembly is built to manage pressures up to 1000 psi and has a unique design with a 135-degree angle for the end 2 fitting, making it suitable for efficient A/C systems in various vehicles.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• End 2 Fitting Type: Adapter
• Hose Material: Nylon
• Fitting Material: Steel
• Cover Material: Elastomer
• Tube 1 Material: Steel
• Hose Inner Diameter: 0.63 in
• Hose Length: 35.87 in
• Hose Outer Diameter: 0.97 in
• Center To Center Length: 71.39 in
• Hose Wall Thickness: 0.17 in
• End 1 Fitting Angle: 30 deg
• End 2 Fitting Angle: 135 deg
• Tube 1 Wall Thickness: 0.05 in
• Tube 1 Outer Diameter: 0.63 in
• Tube 1 Inner Diameter: 0.53 in
• Switch Port Thread Size: M12 mm
• Standard End 1 Fitting Size: #10/12
• Standard Hose Size: #12
• Burst Pressure: 1000 psi
