Freightliner A/C Hose Assembly | A22-52177-318

Description

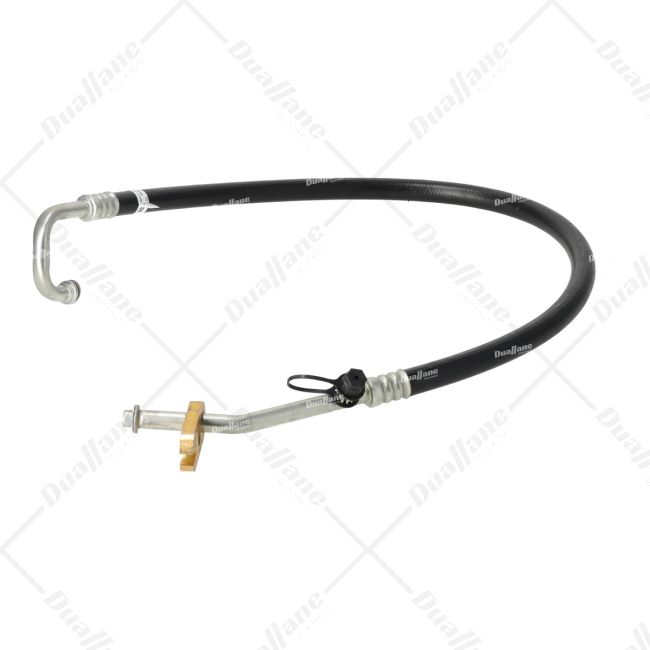

The A22-52177-318 is an A/C hose assembly designed for vehicles like S60 CC1 and 120. It features a nylon hose material, steel fittings and a steel tube with elastomer cover. The hose has dimensions of 0.63 inch inner diameter 41.34 inch length and 0.97 inch outer diameter. It is constructed to handle pressures up to 1000 psi, making it suitable for efficient A/C systems.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• End 2 Fitting Type: Adapter
• Hose Material: Nylon
• Fitting Material: Steel
• Tube Material: Steel
• Cover Material: Elastomer
• Hose Inner Diameter: 0.63 in
• Hose Length: 41.34 in
• Hose Outer Diameter: 0.97 in
• Tube Outer Diameter: 0.63 in
• Tube Wall Thickness: 0.05 in
• Center To Center Length: 50.60 in
• Hose Wall Thickness: 0.17 in
• Tube Inner Diameter: 0.53 in
• End 1 Fitting Angle: 30 deg
• End 2 Fitting Angle: 90 deg
• Switch Port Thread Size: M12 mm
• Standard End 2 Fitting Size: #10
• Standard End 1 Fitting Size: #10/12
• Standard Hose Size: #12
• Burst Pressure: 1000 psi
