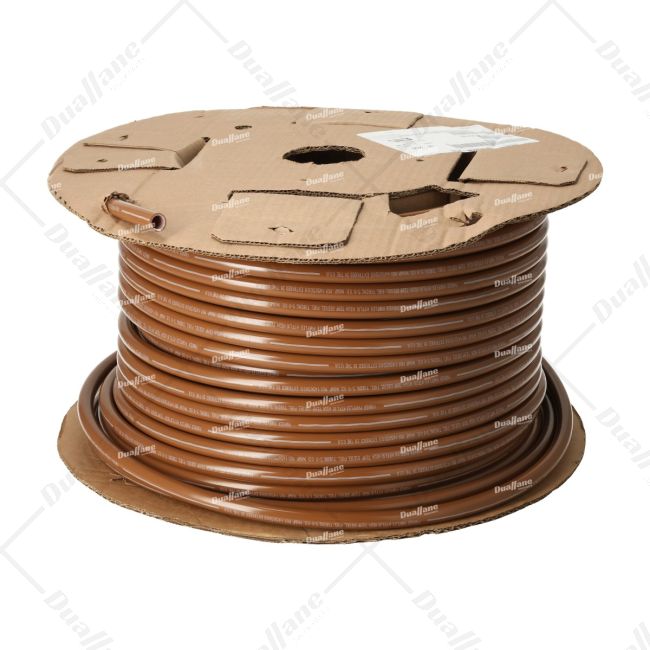

Freightliner 5/8 inch Nylon Fuel Line - Brown | Sold by the Foot | 48-25581-501

Description

The 48-25581-501 is a tube made from nylon reinforcement with a diameter of 5/8 inches (approximately 15.875 mm). Nylon reinforcement provides added strength and durability to the tube, making it suitable for various fluid and air transfer applications in automotive and industrial systems. The tube's construction allows it to withstand high-pressure environments and resist abrasion, making it a reliable choice for use in different fluid-carrying systems.

Features

• Specifications Met: MIL-DTL-83133 HTFL Tubing Compatible with JP-5 and JP-8, MIL-DTL-5624 HTFL Tubing Compatible with JP-5 and JP-8
• Product Style: HTFL - Temp. up to 266˚F (130˚C)
• Order Size: 5/8
• Application: Transportation
• Tube Inside Diameter: 0.441 inch, 11 mm
• Tube Outside Diameter: 5/8 inch, 16 mm
• Maximum Operating Pressure: 140 psi, 9.7 bar
• Minimum Burst Pressure: 900 psi, 9.7 bar
• Maximum Operating Temperature: 266 °F, 130 °C
• Minimum Operating Temperature: -50 °F, -46 °C
• Minimum Bend Radius: 2-7/8 inch, 73 mm
• Compatible Fitting: NTA®
• Media: Fuels (Diesel)
• Color: Brown
• Weight: 0.071 lb/ft, 0.106 kg/m
• Tube Material: Polyamide (PA)
• Length per Package: 76.2 m, 250 ft
• Product Type: High Temperature up to 266˚F (130˚C)
• Cover Color: Brown
• Size: -10
• Cover Material: Polyamide (PA)
