Freightliner 5/8 in. Female Threaded Right-HandSpherical Rod End | VCW 10
Have a Question for Our Team?
Description

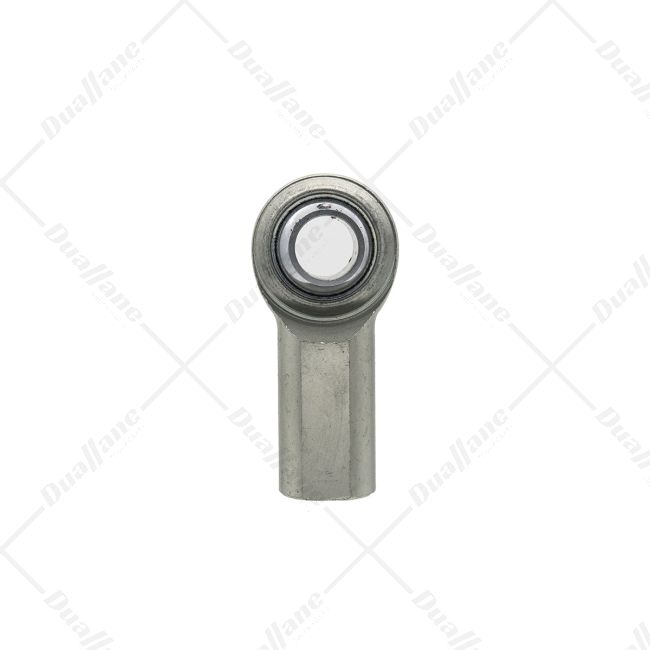

The AUR VCW 10 is a Freightliner Spherical Rod End manufactured by Aurora Bearing Company. This rod end features a 5/8-inch bore diameter and a right-hand threaded shank with a size of 5/8-18 UNF-2B. It is designed for general purpose applications and offers a misalignment angle of 22 degrees. The rod end is constructed with a low carbon steel housing and an alloy steel ball, ensuring durability and reliable performance. It also incorporates a self-lubricating feature for reduced maintenance requirements. With an overall height of 3.2500 inches, this AUR VCW 10 rod end provides a radial static load capacity of 8,204 pounds, making it suitable for various industrial and automotive applications where spherical rod ends are required.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Brand: Aurora Bearing Company
- Ball Material: Alloy Steel
- Ball Width: 0.7500 in
- Bore Diameter: 0.6250 in - 5/8 in
- Grade: Economy/General Purpose
- Harmonization Code: 8483.30.8055
- Head Diameter: 1.5000 in
- Head Width: 0.4840 in
- Housing Material: Low-Carbon Steel
- Length to Ball Center: 2.5000 in
- Lubrication Type: Self-Lubricating
- Misalignment Angle: 22 º
- Overall Height: 3.2500 in
- Race Material: PTFE Composite
- Radial Static Load Capacity: 8204 lb.
- Rod End Type: Female Threaded
- Series: VCW
- Shank Thread Length: 1.3750 in
- Shank Thread Size: 5/8-18
- Thread Direction: Right Hand
- Thread Type: UNF-2B
- Product Type: Spherical Rod Ends
- Bearing Type: Spherical Rod Ends
- Bore Diameter: 0.6250 in
| Shipping Weight (lb) | 0.24 |
|---|---|
| Manufacturer | Freightliner |
| Shipping Length (in) | 6.00 |
| Shipping Width (in) | 4.00 |
| Shipping Height (in) | 4.00 |
| Returnable | Yes |
| Core Exchange | No |
