In Stock!

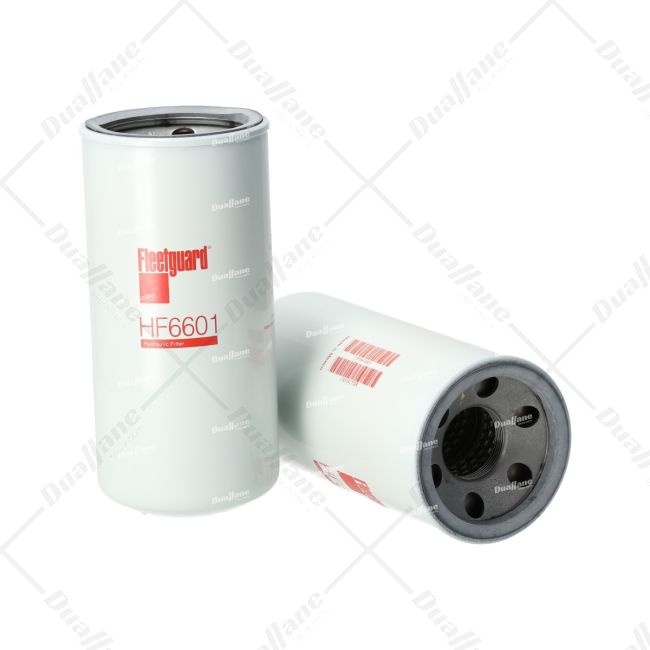

FleetGuard Spin-On Hydraulic Filter | HF6601
SKU
FG HF6601
MPN
HF6601
$49.92
- Buy 6 for $47.42 each and save 5%
Have a Question for Our Team?
Our Customer Service team is ready to help.
Call 1.877.DL.ORDER or Email Us
Monday - Friday 8 AM - 4:30 PM ET
Description
The FG HF6601 is a hydraulic filter made by FleetGuard that possesses specific characteristics. It measures 8.03 inches in length and has a gasket inside diameter of 2.96 inches. The seam outer diameter is 3.74 inches, while the largest outer diameter is 3.68 inches. The gasket outer diameter comes to approximately 3.44 inches. This particular filter demonstrates exceptional filtration capabilities, with a TWA MICRON rating of 1 micron at BETA=2, 8 microns at BETA=20 and 12 microns at BETA=75, making it suitable for use in various hydraulic systems. Importantly, this filter does not include a standpipe feature.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Length: 8.03 in
- Gasket Inside Diameter: 2.96 in
- Seam OD: 3.74 in
- TWA MICRON @ BETA=2: 1 micron
- TWA MICRON @ BETA=75: 12 micron
- Largest OD: 3.68 in
- Gasket OD: 3.44 in
- Standpipe: NO
- TWA MICRON @ BETA=20: 8 micron
| DONALDSON | P569383 | |
|---|---|---|
| BALDWIN | BT372-10 | |
| LUBERFINER | LFH4922 | |
| CASE IH | 561980C1 | |
| PACCAR | 1046Z290, 1046Z593, 1046Z595 | |
| IHC | 562871C91, 561980C1 | |
| CATERPILLAR | 3T8642 | |
| DAEWOO | D416347 | |
| DYNAPAC | 4700223479 | |
| GALION | 149661 | |
| GMC | 25012646 | |
| GROVE | 9904103228 | |
| HYDAC | MFE901032 | |
| KOEHRING | 8320237 | |
| LHA | MPE4010 | |
| PAXMAN | OD31794P2 | |
| TOWMOTOR | 4003058, 697130 | |
| NAPA | 1202 |
| Manufacturer | Fleetguard |
|---|---|
| Shipping Length (in) | 14.00 |
| Shipping Width (in) | 10.00 |
| Shipping Height (in) | 10.00 |
| Returnable | Yes |
| Weight (lb) | 3.00 |
| Core Exchange | No |
