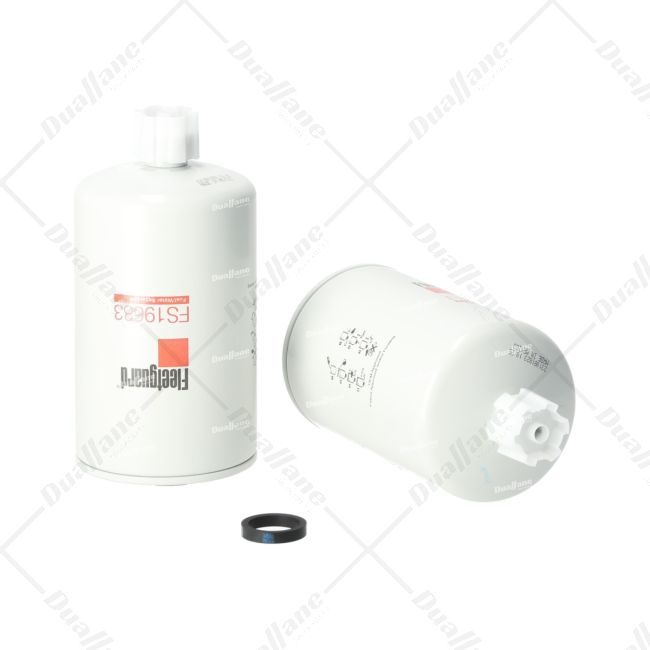

FleetGuard Spin-On Fuel Water Separator | FS19683
- Buy 12 for $26.89 each and save 5%
Have a Question for Our Team?
Description
The FleetGuard FS19683 is a Spin-On Fuel Water Separator designed to effectively separate water and contaminants from the fuel to protect the engine's fuel system. It has a length of 7.37 inches, which makes it suitable for various fuel water separation applications. The filter features a gasket inside diameter of 2.46 inches and a gasket outer diameter of 2.83 inches, ensuring a proper seal and fit. With a largest outer diameter of 3.69 inches, it provides adequate filtration capacity. This filter meets high efficiency standards, with a 98.7% efficiency rating according to SAE J 1985. It also demonstrates effective water separation, achieving 95% free water separation and 95% emulsified water separation. Additionally, it has a micron rating of 10 microns according to SAE J 1985, indicating its capability to filter out very fine particles from the fuel. These features make it a reliable choice for maintaining the cleanliness of the fuel system and ensuring the engine's smooth operation.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Length: 7.37 in
- Gasket Inside Diameter: 2.46 in
- Seam OD: 3.68 in
- EFFICIENCY, TWA BY SAE J 1985: 98.7%
- FREE WATER SEPARATION: 95%
- Largest OD: 3.69 in
- Gasket OD: 2.83 in
- Standpipe: NO
- EMULSIFIED WATER SEPARATION: 95%
- MICRON RATING BY SAE J 1985: 10 micron
| DONALDSON | P550847 | |
|---|---|---|
| BALDWIN | BF1268 | |
| LUBERFINER | LFF8030 | |
| CATERPILLAR | 1752949 | |
| NAPA | 3005 |
| Shipping Weight (lb) | 3.00 |
|---|---|
| Manufacturer | Fleetguard |
| Shipping Length (in) | 12.00 |
| Shipping Width (in) | 7.00 |
| Shipping Height (in) | 4.00 |
| Returnable | Yes |
| Core Exchange | No |
