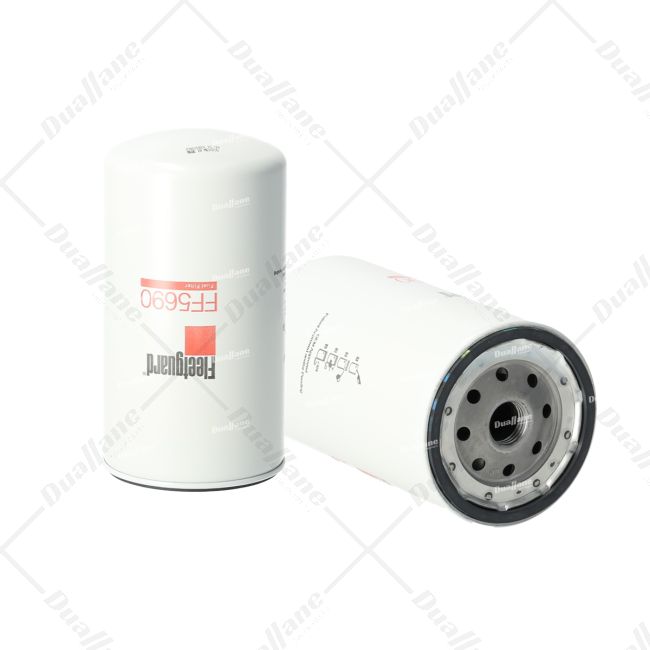

FleetGuard Spin-On Fuel Filter | FF5690

Description

The FG FF5690 is a FleetGuard Spin-On Fuel Filter designed to effectively filter fuel in a variety of applications. With a thread size of 13/16-12 UNS-2B, it provides a secure fit and reliable filtration performance. It features a gasket with an outer diameter of 3.49 inches, ensuring a proper seal and preventing fuel leakage. The filter has a length of 6.91 inches, offering ample surface area for effective filtration. It does not have a standpipe, which is common in some filters to prevent fuel drain-back and ensure immediate fuel pressure upon startup. The FG FF5690 has a high-efficiency rating, with an Efficiency, TWA (Time Weighted Average) by SAE J 1858 of 99.5%. This indicates its ability to capture and retain a high percentage of particles, enhancing engine protection. Additionally, it has a 5-micron rating by SAE J 1858, indicating the size of particles it can effectively filter out of the fuel. Overall, this filter is designed to ensure clean and reliable fuel supply to engines in various applications.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Thread Size: 13/16-12 UNS-2B
• Gasket OD: 3.49 in
• Length: 6.91 in
• Standpipe: No
• Micron Rating by SAE J 1858: 5 micron
• Gasket Inside Diameter: 3.11 in
• Largest OD: 3.67 in
• Seam OD: 3.686 in
• Efficiency, TWA (Time Weighted Average) by SAE J 1858: 99.5%
