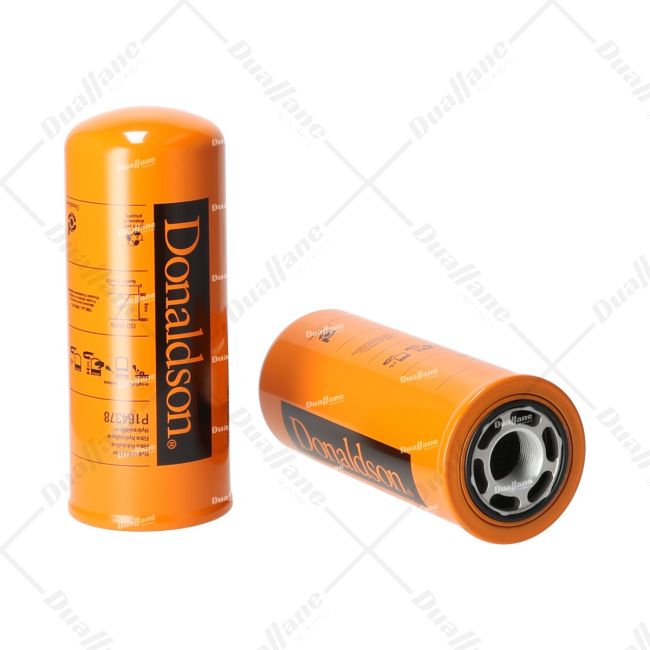

Donaldson Spin-On Hydraulic Filter | P164378

Description

The DN P164378 Donaldson Spin-On Hydraulic Filter is a high-quality filter designed to meet the needs of hydraulic systems. With a length of 9.44 inches and an outer diameter of 97 mm, it has an overall length of 239.78 mm. The filters efficiency is tested according to the ISO 16889 standard, ensuring reliable performance. It features a thread size of 1 3/8-12 UN in., and the gasket has an outer diameter of 70 mm and an inner diameter of 63 mm. This filter is specifically designed for the HMK04/24 model and comes in a convenient spin-on style. It has excellent filtration capabilities with an efficiency of Beta 1000 at 11 microns and Beta 2 at 4 microns, ensuring that even very fine particles are effectively filtered out, promoting the longevity and efficiency of hydraulic systems.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Length: 9.44 in
• Outer Diameter: 97 mm
• Overall Length: 239.78 mm
• Efficiency Test Standard: ISO 16889
• Thread Size: 1 3/8-12 UN in
• Gasket Outer Diameter: 70 mm
• Gasket Inner Diameter: 63 mm
• Model: HMK04/24
• Style: Spin-On
• Efficiency Beta 1000: 11 microns
• Efficiency Beta 2: 4 microns
