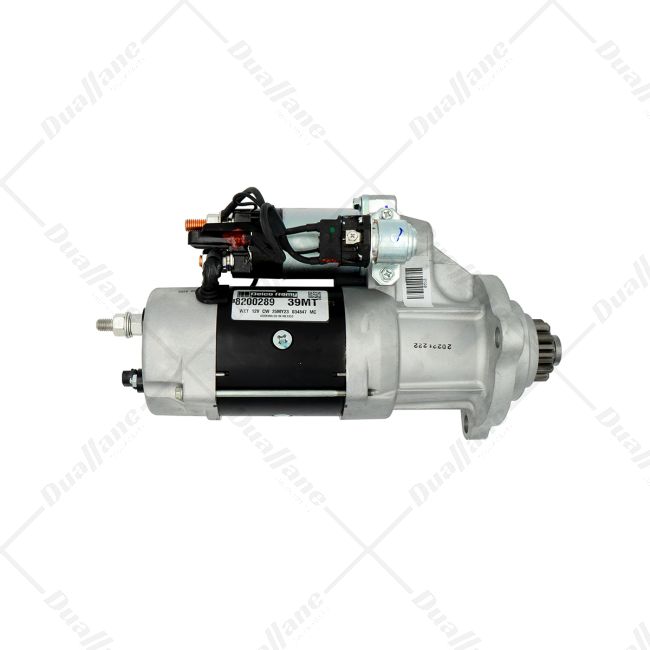

Delco Remy 39MT 12V Starter | 8200289
Have a Question for Our Team?
Description
The Delco Remy 39MT 12 V Starter is built with an electrical soft start that rotates the pinion for proper ring gear engagement before cranking, minimizing tooth abutment-related damage. Its sealed solid link solenoid eliminates contact welding in low-system voltage situations, providing enhanced reliability. The sealed noiseless configuration in this starter minimizes debris accumulation and contamination. This starter uniquely includes an integral magnetic switch (IMS) that ensures maximum voltage in any starting condition as well as rotatable flange models that help improve service flexibility. This Delco Remy 39MT 12-Volt Starter is specialized for Freightliner, Sterling Truck and Western Star vehicles that utilize SAE 3 mounts. It features an 11-tooth pinion with a 6/8 pitch and a solenoid position of 82 degrees. Over Crank Protection (OCP) also comes standard on this model.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Diameter: 4.50 in
- Pitch: 0.75 mm
- Pinion Pitch: 0.75 mm
- Mounting Flange to End of Case: 357.90 mm
- Mounting Flange to Pinion End at Rest: 46.70 mm
- Model: 39MT
- Rotation Direction: Clockwise
- Bolt Hole Quantity: 3
- Tooth Quantity: 11
- Polarity: Insulated
- Pinion Gear Tooth Quantity: 11
- Over Crank Protection: Yes
- Solenoid Position: 082
- Family: 39MT
- Solenoid Position Angle: 82 deg
- Nose Cone Material: Aluminum
- Solenoid Attached: Yes
- Nose Cone Type: Open Nose
- Mounting Type: SAE 3
- Housing Material: Steel
- Voltage: 12 V
- System Voltage: 12 V
- Nominal Output: 12 Volts peak at 7.3 kW/24 Volts peak at 9.0 kW
- Power Rating: 7.30 kW
| ALLTECH DISTRIBUTIONS INC | 104-6912, 104-6912-CR, 104-6912-R, 115-1307 | |
|---|---|---|
| AUTOCAR INC | 8200289 | |
| REMY | 19011516, 19011517, 19011518, 19011521, 19011529, 19011530, 61003778, 61003779, 8200033, 8200040, 8200050, 8200083, 8200090, 8200091, 8200319, 8200604, 8200605, 8200623, 8200627, 8200628, 8200661, 8200662, 8200686, 8200692, 8200820, 8201078, 8201079, 8300009, 8300019 | |
| DENSO INTERNATIONAL AMERICA | 282-0105, 428000 1211, 428000-4440, TG128000-4420, TG428000-4440 | |
| FLEETPRIDE | 8200289’FLT2004292 | |
| FREIGHTLINER CORPORATION | DR 8200289 | |
| ISKRAMFG. CO. | 11.131.935 | |
| LEECE-NEVILLE CO. | M125632, MS2-514 | |
| MACK TRUCKS, INC. | 2132-8200289, 8MJ5439M, DR 8200289 | |
| MIDWEST WHEEL | DE 8300019 | |
| MITSUBISHI ELECTRIC AND ELECTRONICS USA | MIB970777 | |
| NAVISTAR INTERNATIONAL TRANSPORTATION CORP. | 3815734C91, 8200289, 8200604, 8200605, 8300009, 8300019, DRA8200289, DRA8300009, DRA8300019, FLT2004292, NDTG4280004440, UPT8200289, ZLNM125632 | |
| PACCAR PARTS | 19011518, 428000-4420, 428000-4440, 8200308, 8200623 | |
| PACCAR PARTS | 8300009RMAN, 8300019RMAN, D61-6002-002, D61-6002-004, D61-6002-008, M125601 | |
| PARTS FOR TRUCKS INC | DRA-19011516, DRA-19011518, DRA-19011521, DRA-8200289, DRA-8300009 | |
| PRIMA BRANDS | 59-039-1101, 59-039-1139 | |
| STERLING TRUCK CORPORATION | DR 8200289 | |
| TRUCKPRO LLC | DH282-0105 | |
| TUFFLINE DRUMS AND HUBS | TLS4712N | |
| VOLVO TRUCKS NORTH AMERICA, INC. | 20851006, DR 8200289 | |
| WAI GLOBAL | 6911N |
| Manufacturer | Delco Remy |
|---|---|
| Shipping Length (in) | 28.00 |
| Shipping Width (in) | 24.00 |
| Shipping Height (in) | 14.00 |
| Returnable | No |
| Weight (lb) | 31.00 |
| Core Exchange | No |
