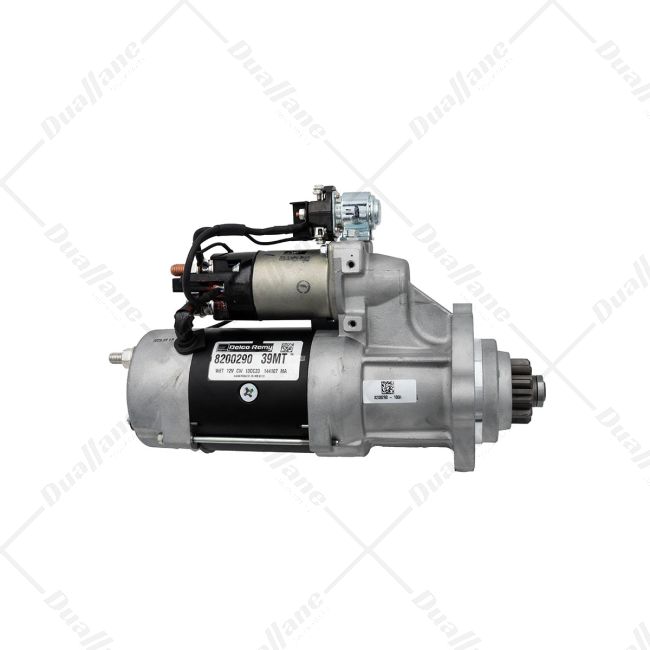

Delco Remy 39MT 12 V Starter | 8200290

Description

The 39MT specifically is built with an electrical soft start that rotates the pinion for proper ring gear engagement before cranking, minimizing tooth abutment-related damage. Its sealed solid link solenoid eliminates contact welding in low system voltage situations, providing enhanced reliability. The sealed noiseless configuration in this starter minimizes debris accumulation and contamination. This starter uniquely includes an integral magnetic switch (IMS) that ensures maximum voltage in any starting condition as well as rotatable flange models that help improve service flexibility. This Delco Remy 39MT 12-Volt Starter is specialized for Caterpillar, Cummins, Kenworth, Peterbilt and Mack vehicles that utilize SAE 3 mounts. It features an 11 tooth pinion with a 6/8 pitch and a solenoid position of 82 degrees. Over Crank Protection (OCP) also comes standard on this model.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Diameter: 4.50 in
• Pitch: 0.75 mm
• Pinion Pitch: 0.75 mm
• Mounting Flange to End of Case: 357.90 mm
• Mounting Flange to Pinion End at Rest: 46.70 mm
• Model: 39MT
• Rotation Direction: Clockwise
• Bolt Hole Quantity: 3
• Tooth Quantity: 11
• Polarity: Insulated
• Pinion Gear Tooth Quantity: 11
• Over Crank Protection: Yes
• Solenoid Position: 082
• Family: 39MT
• Solenoid Position Angle: 82 deg
• Nose Cone Material: Aluminum
• Solenoid Attached: Yes
• Nose Cone Type: Open Nose
• Mounting Type: SAE 3
• Housing Material: Steel
• Voltage: 12 V
• System Voltage: 12 V
• Nominal Output: 12 Volts peak at 7.3 kW/24 Volts peak at 9.0 kW
• Power Rating: 7.30 kW
