ConMet Premium FF Front Hub | 10082204
Have a Question for Our Team?
Description

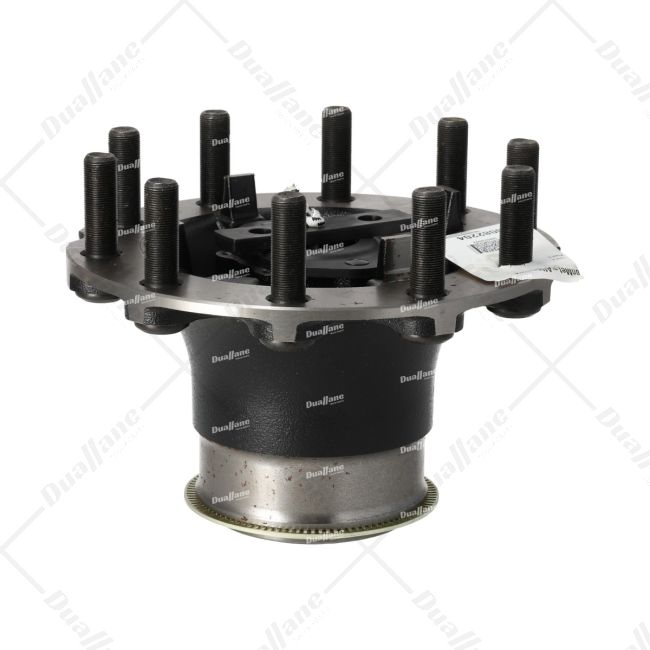

The CM 10082204 represents a top-quality ConMet Premium FF Front Hub, purposely created to be used in the front axle of commercial vehicles. This hub comes with ABS (Anti-lock Braking System) and consists of 10 wheel studs. It possesses an HP10 hub type and incorporates an inboard bearing set 427, as well as an outboard bearing set 428. The hub has a remarkable rating of 7,350 lbs. and is manufactured using robust materials like iron and ductile iron. It suits drum brake systems flawlessly and is specifically designed for the FF (Front) axle type. Notable specifications of this hub comprise a brake pilot diameter measuring at 8.78 inches, a wheel stud bolt circle diameter of approximately 11.25 inches, along with a hub offset measuring around 5.44 inches, among other notable features.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Mounting Location: Front Axle
- ABS Included: Yes
- Stud Quantity: 10
- Hub Type: HP10
- Inboard Bearing Set: 427
- Outboard Bearing Set: 428
- Hub Rating: 7350 lbs.
- Material: Iron
- Brake Type: Drum
- Axle Type: FF
- Casting Material: Ductile Iron
- Axle Position: Front
- Brake Pilot Diameter: 8.78 in
- Wheel Stud Bolt Circle Diameter: 11.25 in
- Stud Standout: 2.6 in
- Cap Bolt Circle Diameter: 4.50 in
- ABS Offset: 1.53 in
- Hub Offset: 5.44 in
- Wheel Stud Thread Size: M22 X 1.5 mm
- Wheel Stud Standout: 2.6 in
| CONMET | 10018268, 10018280, 10018288, 10018300, 10033265, 10033267, 10033273, 10033275, 10036433, 10036435, 10036800, 10038182, 10038184, 10041521, 10041522, 10045193, 10045195, 10045197, 10045199, 10080346, 10080348, 10080350, 10080351, 10080366, 10080368, 10080374, 10080376, 10080432, 10081353, 10082204 | |
|---|---|---|
| STEMCO | 453-0137, 453-0136 |
| Manufacturer | ConMet |
|---|---|
| Shipping Length (in) | 28.00 |
| Shipping Width (in) | 24.00 |
| Shipping Height (in) | 16.00 |
| Returnable | Yes |
| Weight (lb) | 54.20 |
| Core Exchange | No |
