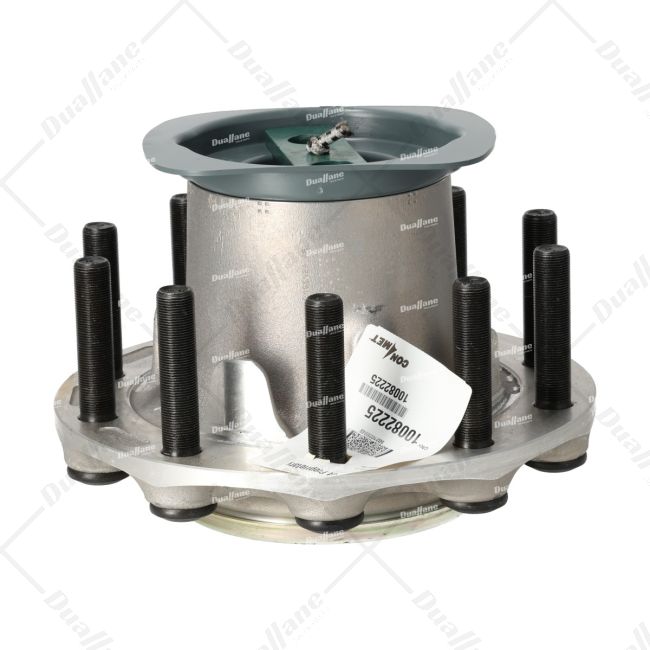

ConMet Pre-Adjusted Hub Assembly for Tag or Pusher Wheel | 10082225
Have a Question for Our Team?
Description
The CM 10082225 is a ConMet Pre-Adjusted Hub Assembly designed for use on the trailer axle of commercial vehicles. With a maximum load rating of 11,500 lbs., this hub assembly is well-suited for heavy-duty applications. It features an HP10 hub type and drum brakes, making it a reliable choice for trailers. The hub's design includes a pilot diameter of 8.78 inches, a flange thickness of 1.15 inches and a wheel stud bolt circle diameter of 11.25 inches, ensuring it can accommodate the necessary components for proper wheel attachment. The use of aluminum as the hub's material strikes a balance between strength and weight savings, which is crucial for efficiency and performance in trailer applications. Its pre-adjusted design simplifies installation and maintenance, while the inboard bearing set 431 and outboard bearing set 427 contribute to its robust construction.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Maximum Load Rating: 11500 lbs.
- Hub Type: HP10
- Inboard Bearing Set: 431
- Outboard Bearing Set: 427
- Hub Rating: 11500 lbs.
- Pilot Diameter: 8.78 in
- Flange Thickness: 1.15 in
- Wheel Stud Bolt Circle Diameter: 11.25 in
- Hub Offset: 0.34 in
- Hub Cap Bolt Circle Diameter: 5.50 in
- Wheel Stud Thread Size: M22 X 1.5 mm
- Wheel Stud Standout: 3.8 in
- Material: Aluminum
- Brake Type: Drum
- Axle Type: TN (Trailer)
- Axle Position: Trailer
| AUTOMANN | 150.T4101.S1, 150.4023PS.S1 | |
|---|---|---|
| CENTRIC PARTS | 10005480 | |
| CONMET | 105776, 105777, 10082225, 10082250 |
| Shipping Weight (lb) | 48.00 |
|---|---|
| Manufacturer | ConMet |
| Shipping Length (in) | 16.00 |
| Shipping Width (in) | 16.00 |
| Shipping Height (in) | 17.00 |
| Returnable | Yes |
| Core Exchange | No |
