Chamber Assembly - Spring & Service Brake | GC3030L

Description

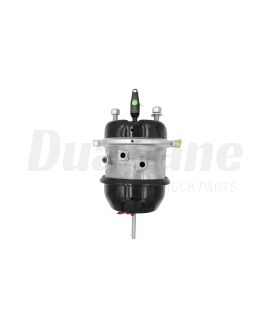

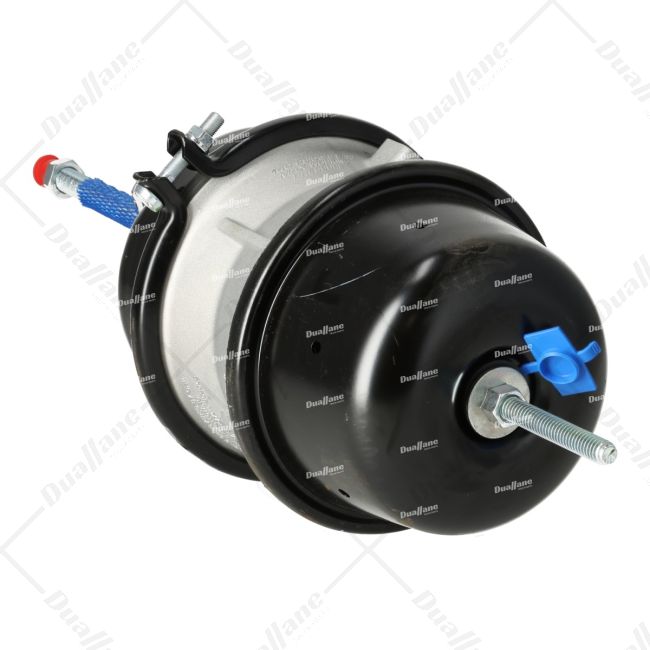

The HDX GC3030L is a chamber assembly that serves both the spring and service brakes. It's essential to mention that this product falls under the hazardous material category and complies with California Proposition 65 regulations due to potential links to cancer and reproductive issues. The chamber assembly is made of steel housing material and has a powder-coated finish to ensure durability and protection. It features a 3030 chamber type, and one complete assembly is included in this product. The airport position is set at a 90-degree angle, while the service clamp band position remains at 0 degrees. With a stroke length of 3 inches, it provides optimal braking performance, complemented by its pushrod length of 10 inches. The distance between studs measures approximately 120.7 mm. In terms of dimensions, the rolled spring housing flange spans about 8.30 inches, whereas the service clamp band measures around 10.2 inches in length. From the face of the service housing, there is a distance of about 4.75 inches to reach the clevis pin centerline effectively. Furthermore, from the mounting bracket to the spring housing end, there is an approximate length of 9.90 inches with an additional piggyback length of around 7.40 inches for added convenience and functionality in installation procedures. To facilitate efficient operation, it has been designed with an inlet position angle set at precisely 90 degrees for optimized performance within various vehicle braking systems. Overall, this chamber assembly plays a crucial role in ensuring safe and effective braking performance for different types of vehicles.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Finish: Powder Coated
• Housing Material: Steel
• Chamber Type: 3030
• Quantity: 1
• Air Port Position: 90 deg
• Service Clamp band Position: 0 deg
• Stroke Length: 3 in
• Push Rod Length: 10 in
• Stud Distance: 120.7 mm
• Dimension At Rolled Spring Housing Flange: 8.30 in
• Dimension At Service Clamp band: 10.2 in
• Distance To Clevis Pin Centerline From Face Of Service Housing: 4.75 in
• Length From Mounting Bracket To Spring Housing End: 9.90 in
• Piggyback Length: 7.40 in
• Push Rod Length From Face Of Service Housing: 10 in
• Inlet Position Angle: 90 deg
