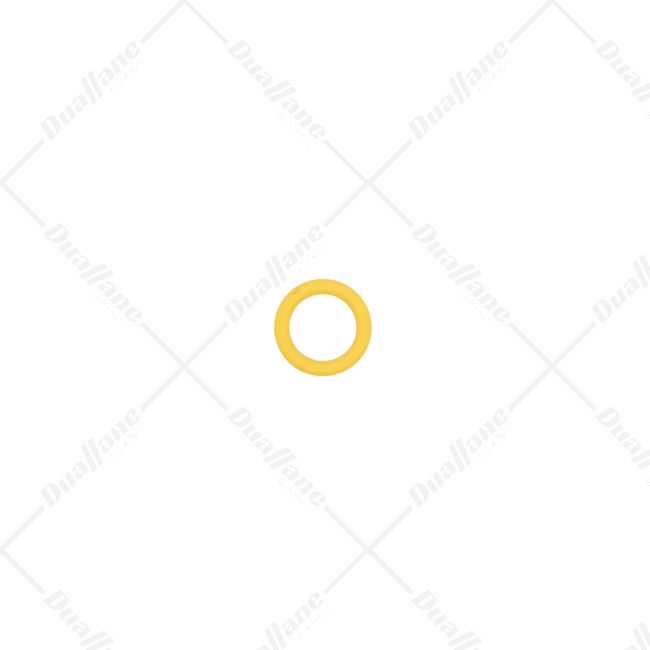

Caterpillar Seal O-ring | 9M4849

Description

The 9M4849 Seal O-ring is a type of O-ring that is designed to create a seal. It is made from rubber material and has a sealing substance, ensuring its reliability. This O-ring can be used in applications such as sealing systems, high-temperature air seals and high-temperature static grease seals. It works well with substances like air, diacetone alcohol and ethylene glycol. However, it is not suitable for acetone, fuel, oil, gasoline or other similar substances. The O-ring has a section diameter of 0.21 inches, an inside diameter of 0.912 inches and an outside diameter of 1.331 inches, for reliable sealing performance. Made from silicone (VMQ) rubber material, it can withstand temperatures ranging from -55 to 150° C.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Seal/O-ring Type: Standard
• Dash Size (in): 317
• Primary Sealing Material: Rubber
• Applications: Electrical system seals; High-temperature air seals; High-temperature static grease seals
• Compatible With: Air; Diacetone alcohol; Ethylene glycol; Extreme high/low-temperatures; High aniline point oil; Iso-butyl alcohol; Ozone and UV light; Polyglycol
• Not Compatible With: Acetone; Aromatic hydrocarbons; EP oil; Fuel oil; Gasoline; Ketones; Low aniline point oils; Petroleum oils; Steam and hot water
• Temperature (° F): -50 - 300
• Cross-Section Diameter (in): 0.21
• Inside Diameter (in): 0.912
• Outside Diameter (in): 1.331
• Hardness (Shore A): 70
• SAE AS568 Dash Size: -317
• Color: Yellow
• Material: Silicone (VMQ)
• Material Description: Silicone (VMQ) rubber is capable of service temperatures of -55 to 150C and is resistant air. Silicone rubber should not be used in applications that require resistance to fuel, oil and coolants.
• Coating: None
