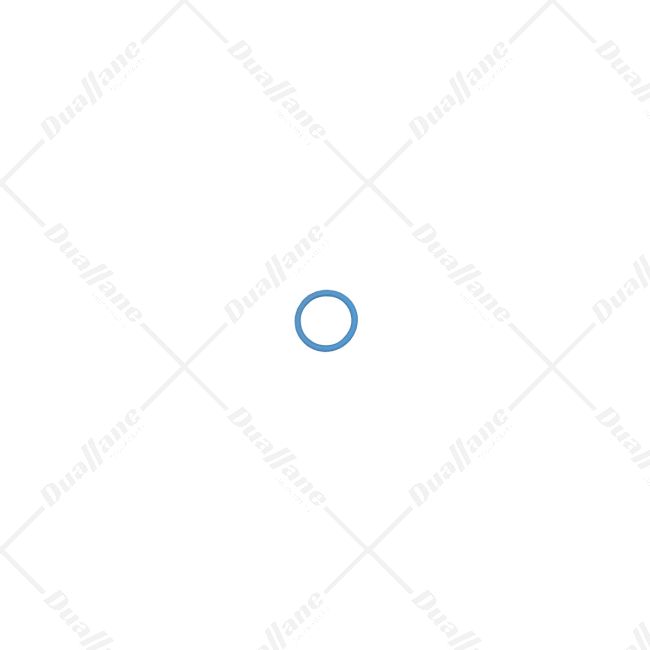

Caterpillar Seal O-ring | 8L2786

Description

The 8L2786 Seal O-ring is specifically designed for high-temperature applications that need to withstand air, fuels, lubricants and hydraulic fluids. This O-ring is made from FKM rubber, which is known for its ability to handle temperatures ranging from -40 to 150° C. It provides resistance against air, fuel (including bio-diesel), lubricants and oils. The O-ring has a section diameter of 0.087 inches, an inside diameter of 0.644 inches and an outside diameter of 0.818 inches. It has a hardness rating of 75 Shore A and is color-coded as blue for easy identification. To facilitate installation and assembly, the O-ring is coated with PTFE for added protection. However, it's important to note that FKM rubber should not be used in applications where resistance to water or coolant is required.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Compatible With: Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
• Not Compatible With: Amin; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
• Applications: High-temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids
• Seal/O-ring Type: Standard
• Temperature (° F): -40 - 350
• Primary Sealing Material: Rubber
• Cross-Section Diameter (in): 0.087
• Inside Diameter (in): 0.644
• Outside Diameter (in): 0.818
• Hardness (Shore A): 75
• SAE AS568 Dash Size: -908
• Color: Light Blue
• Material: FKM (75)
• Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
• Coating: PTFE coating protects the O-ring from installation damage and provides ease of assembly.
