Caterpillar Seal O-ring | 6V5134

Description

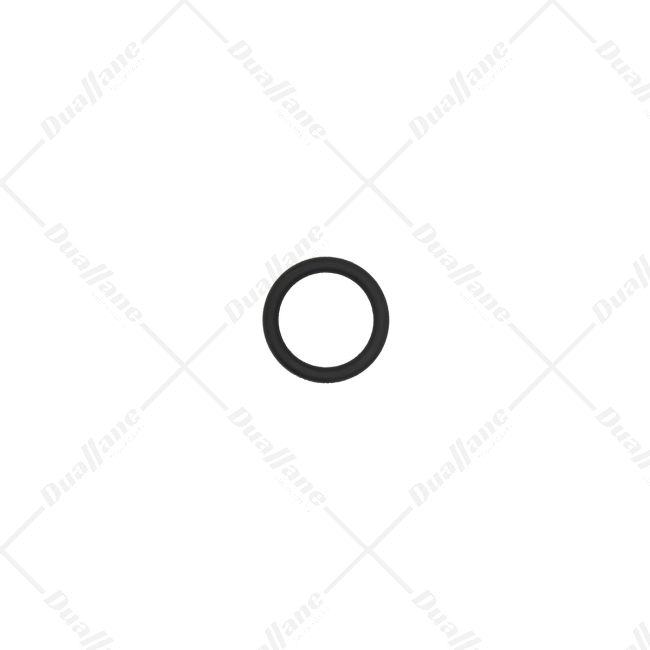

The 6V5134 Caterpillar Seal O-ring from OMC is a component that can be used in high-temperature applications where resistance to substances like air, fuels, lubricants and hydraulic fluids are needed. It works well in demanding environments with a temperature range of -40° F to 350° F. This seal is made of rubber material, called FKM rubber. However, it's important to remember that it may not work with substances such as amines, brake fluids, engine coolant, fire resistant fluids, ketones, steam or water. The O-ring has a dash size of 322 and 1.225 inches inside diameter. Its outside diameter is 1.645 inches. It comes in a black color with a hardness rating of 75 Shore A.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Applications: High-temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids
• Temperature (° F): -40 - 350
• Compatible With: Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
• Seal/O-ring Type: Standard
• Primary Sealing Material: Rubber
• Not Compatible With: Amin; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
• Dash Size (in): 322
• Cross-Section Diameter (in): 0.21
• Inside Diameter (in): 1.225
• Outside Diameter (in): 1.645
• Hardness (Shore A): 75
• SAE AS568 Dash Size: -322
• Color: Black
• Material: FKM
• Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
