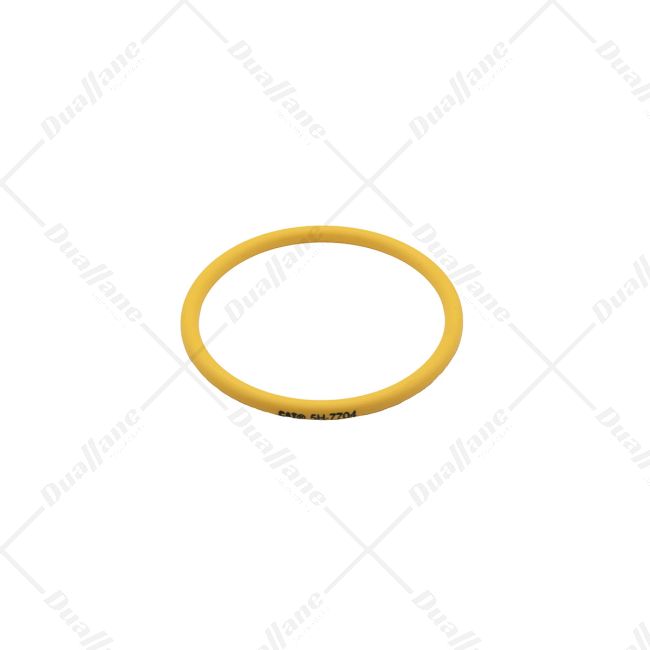

Caterpillar Seal O-ring | 5H7704

Description

The 5H7704 seal is commonly used in a variety of applications such as sealing systems and high temperature, air and grease. It is made of Silicone (VMQ) rubber which can withstand temperatures ranging from -50° F to 300° F. However it is not compatible with substances like acetone, fuel, oil and gasoline. This seal has dimensions of 0.275 inch Diameter, 3.725 inch inside diameter and 4.275 inch outside diameter. It is specifically designed for use in temperature and electrical environments. It should not be used in situations where resistance to certain substances is necessary.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Applications: Electrical system seals; High-temperature air seals; High-temperature static grease seals
• Seal/O-ring Type: Standard
• Primary Sealing Material: Rubber
• Temperature (° F): -50 - 300
• Not Compatible With: Acetone; Aromatic hydrocarbons; EP oil; Fuel oil; Gasoline; Ketones; Low aniline point oils; Petroleum oils; Steam and hot water
• Compatible With: Air; Diacetone alcohol; Ethylene glycol; Extreme high/low temperatures; High aniline point oil; Iso-butyl alcohol; Ozone and UV light; Polyglycol
• Cross-Section Diameter (in): 0.275
• Inside Diameter (in): 3.725
• Outside Diameter (in): 4.275
• Material: Silicone (VMQ)
• Material Description: Silicone (VMQ) rubber is capable of service temperatures of -55 to 150C and is resistant to air. Silicone rubber should not be used in applications that require resistance to fuel, oil, and coolants.
• Hardness (Shore A): 70
• SAE AS568 Dash Size: Not available
• Coating: None
• Color: Yellow
