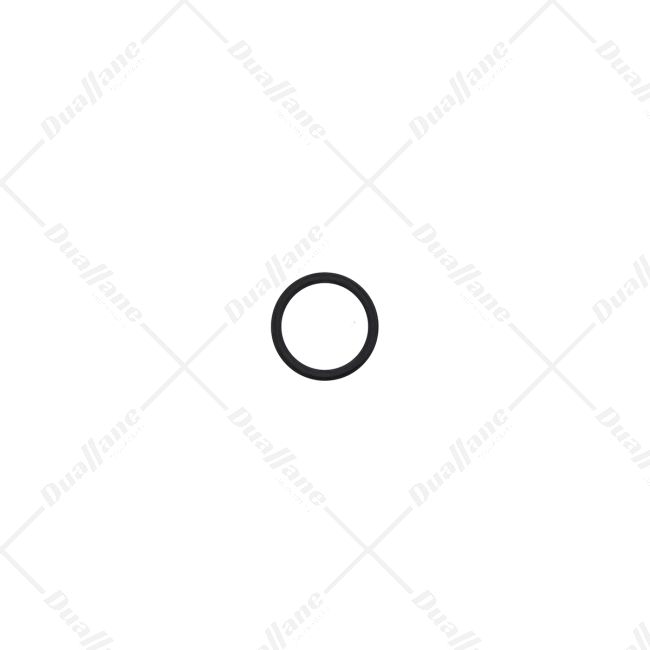

Caterpillar Seal O-ring | 1482903

Description

The Seal O-ring 1482903 is classified with a dash size 218, indicating its size category. This O-ring is crafted from rubber with FKM (Fluoroelastomer) being the sealing material used. The cross-section diameter of this O-ring measures 0.139 inches while it boasts a diameter of 1.234 inches and an outside diameter of 1.512 inches. With a hardness level of 95 Shore A, this O-ring falls under the SAE AS568 Dash Size 218 and features a distinct dark blue coloration. FKM rubber provides resilience in temperatures ranging from -40 to 150 degrees Celsius. It exhibits resistance to various elements such as air, fuel (including bio diesel), lubricants and oils. However, it's essential to note that FKM rubber may not be suitable for applications requiring resistance against water or coolant. Additionally, this O-ring has been coated with PTFE to ensure protection against installation damage and facilitate effortless assembly.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Dash Size (in): 218
• Seal/O-ring Type: Standard
• Primary Sealing Material: Rubber
• Cross-Section Diameter (in): 0.139
• Inside Diameter (in): 1.234
• Outside Diameter (in): 1.512
• Hardness (Shore A): 95
• SAE AS568 Dash Size: -218
• Color: Dark Blue
• Material: FKM
• Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
• Coating: PTFE coating protects the O-ring from installation damage and provides ease of assembly.
