Caterpillar O-ring Seal (SAE 1 5/16-12) | 2385084

Description

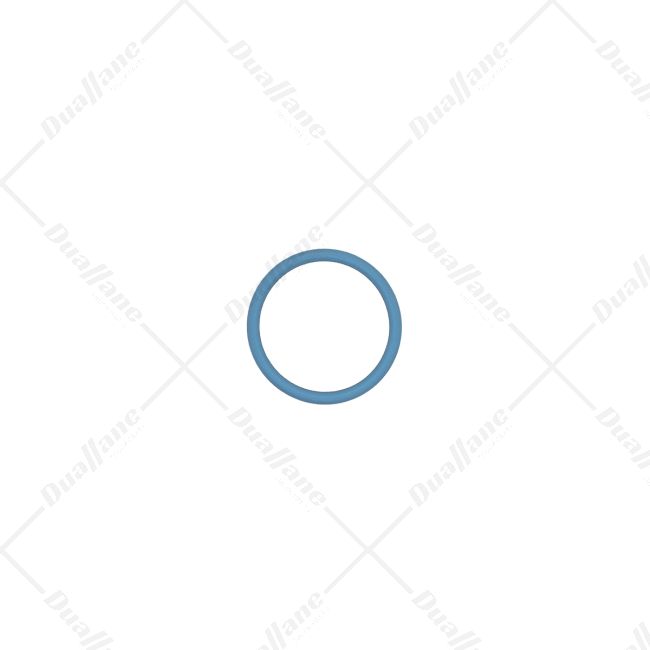

The 2385084 Seal-O-ring is a high-performance sealing solution suitable for high-pressure and high-temperature applications. It has an excellent temperature range of -40° F to 350° F and is compatible with various fluids including diester lubricants, petroleum fluids, phosphate ester fluids, silicone fluids and more. However, its not recommended for use with certain substances like amines, brake fluids, engine coolant and others. This straight thread O-ring (STOR) has a primary sealing material made of FKM rubber with a hardness of 90 Shore A, providing resistance to air, fuel, lubricants and oils. Its dimensions include a dash size of 916, cross-section diameter of 0.116 inches, inside diameter of 1.171 inches and outside diameter of 1.403 inches. The O-ring is coated with PTFE to protect it during installation and ensure easy assembly. The light blue color helps with identification and its material description ensures durability and performance within specified temperature and fluid ranges.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Temperature (° F): -40 - 350
• Compatible With: Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
• Fitting Size (in): 1-5/16 – 12
• Not Compatible With: Amin; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
• O-ring Type: Straight Thread O-ring (STOR)
• Primary Sealing Material: Rubber
• Dash Size (in): 916
• Applications: High-pressure, high-temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids; ORFS, STORS seals
• Cross-Section Diameter (in): 0.116
• Inside Diameter (in): 1.171
• Outside Diameter (in): 1.403
• Hardness (Shore A): 90
• SAE AS568 Dash Size: -916
• Color: Light Blue
• Material: FKM (90)
• Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
• Coating: PTFE coating protects the O-ring from installation damage and provides ease of assembly.
