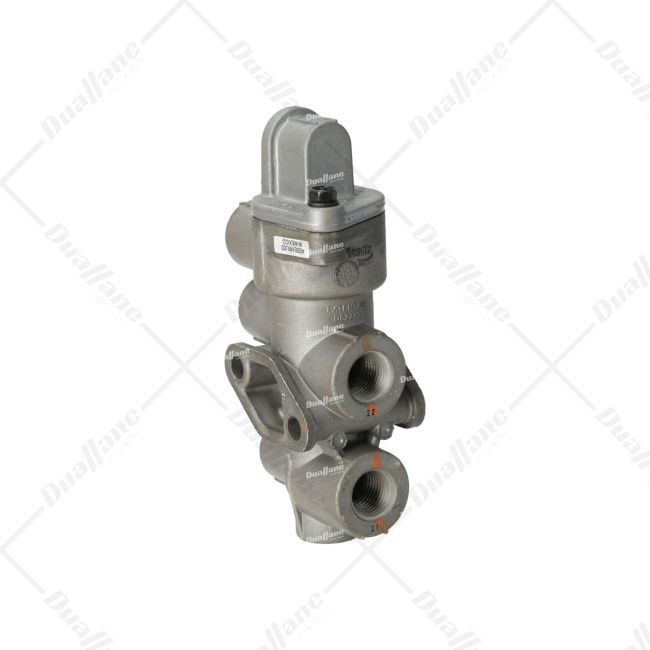

Bendix Tractor Protection Valve | 065706

Description

The BW 065706 serves as a Bendix Tractor Protection Valve that plays a role in maintaining the safety and efficiency of tractor trailer braking systems. With its dimensions measuring 171.70 mm in length, 55.63 mm in width and 82.80 mm in height, this valve is responsible for regulating and controlling air pressure across brake-related ports. In the realm of tractor trailers' braking systems, the BW 065706 Tractor Protection Valve holds significance, ensuring dependable operation even amidst challenging temperature conditions.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Length: 171.70 mm
• Width: 55.63 mm
• Height: 82.80 mm
• Mounting Dimension: 0.34 in
• Supply Port Thread Size: 1/4 PT in
• Control Port Thread Size: 3/8 PT in
• Trailer Service Port Thread Size: 1/2-14 NPT in
• Tractor Protection Port Thread Size: 1/4-18 NPT in
• Trailer Supply Port Thread Size: 1/2-14 NPT in
• Auxiliary Supply Port Thread Size: 1/4-18 NPT in
• Tractor Primary Control Port Thread Size: 3/8-18 NPT in
• Stop Light Switch Port Thread Size: 1/4-18 NPT in
• Tractor Secondary Control Port Thread Size: 3/8-18 NPT in
• Mounting Type: Cab/Chassis
• Minimum Operating Temperature: -40 Deg. F
• Maximum Operating Temperature: 200 Deg. F
• Weight: 0.64 kg
• Mounting Location: Cab/Chassis
• Vented: Yes
• Trailer Service Quick Release: No
• Service Line Shut Off Pressure: 20 psi
