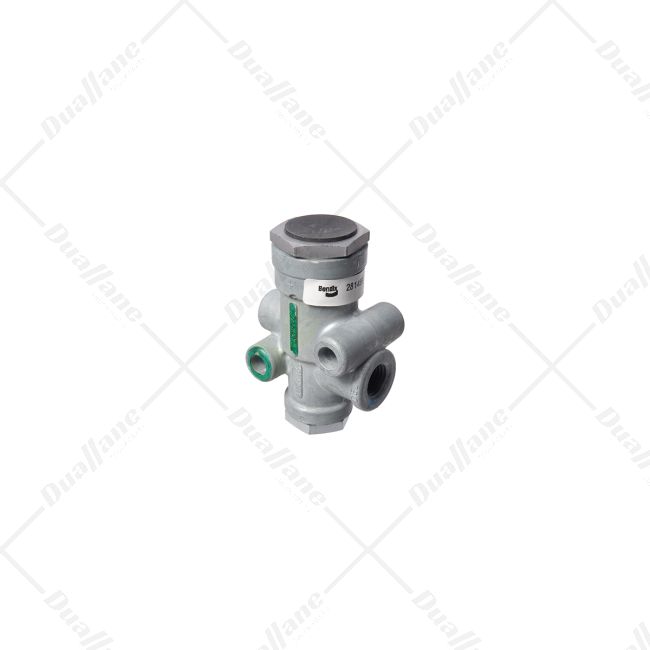

Bendix TR-3 Inversion Valve | 281459N

Description

The Bendix TR-3 Inversion Valve, model BW 281459N, is a component found in air brake systems that is responsible for accurately controlling the inversion of air pressure. This valve plays a role in ensuring the functioning of various functions within the braking system. It has been designed to operate across a temperature range from -40° F to 200° F, which makes it suitable for use in different environmental conditions. The valve has dimensions measuring 1.93 mm in length, 1.38 mm in width and 2.97 mm in height, with a mounting dimension of 0.28 inches. For the supply port and delivery port 1, it utilizes a thread size of 1/4-18 NPT while the control port features a thread size of 1/8-27 NPT. With an exhaust pressure rating of 40 psi and an opening pressure of 25 psi, this valve incorporates pressure thresholds for its exhaust and inlet openings to ensure operation. Additionally, it comes equipped with a dust shield on its exhaust port type.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Minimum Operating Temperature: -40 Deg. F
• Maximum Operating Temperature: 200 Deg. F
• Length: 1.93 mm
• Width: 1.38 mm
• Height: 2.97 mm
• Mounting Dimension: 0.28 in
• Supply Port Thread Size: 1/4-18 NPT in
• Control Port Thread Size: 1/8-27 NPT in
• Delivery Port 1 Thread Size: 1/4-18 NPT in
• Exhaust Pressure: 40 psi
• Opening Pressure: 25 psi
• Exhaust Opening Ascending Pressure: 40 psi
• Inlet Opening Descending Pressure: 25 psi
• Inlet Opening Pressure: 8 psi
• Exhaust Port Type: Dust Shield
