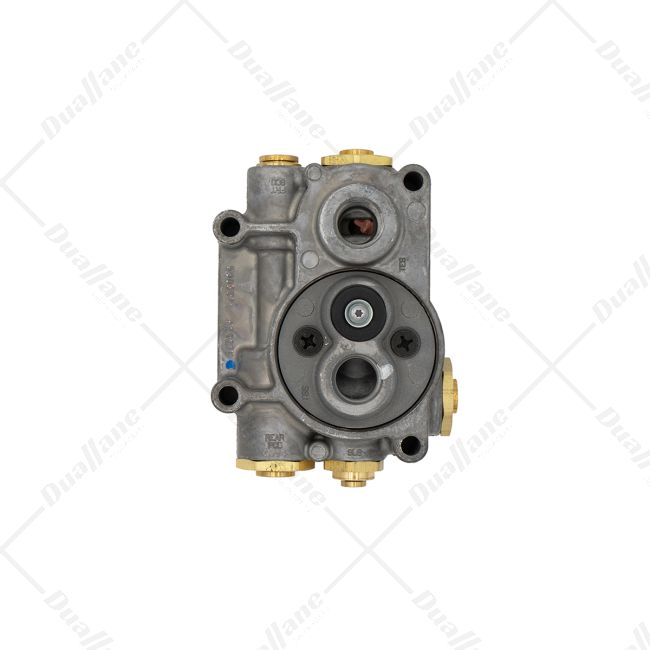

Bendix TP5 Control Valve | 800396

Description

The Bendix TP5 Control Valve known as the BW 800396 is specially designed for air brake systems in vehicles. It plays a role in ensuring the efficient operation of both trailers and tractors. Built to withstand temperatures, it can function reliably between -40° F and 200° F. The valve's multiple ports have thread sizes that enable control and airflow. Equipped with a vented design, it has a service line shut-off pressure of 10 psi and offers quick release capability for trailer service. Overall, this valve is crucial for maintaining the dependability and safety of the braking system.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Length: 146.56 mm
• Width: 107.19 mm
• Height: 58.93 mm
• Mounting Dimension: 0.34 in
• Trailer Control Port Thread Size: 3/8 PTC in
• Trailer Service Port Thread Size: 1/2-14 NPT in
• Tractor Protection Port Thread Size: 3/8 PTC in
• Trailer Supply Port Thread Size: 1/2-14 NPT in
• Tractor Primary Control Port Thread Size: 1/2 PTC in
• Stop Light Switch Port Thread Size: 1/4 PTC in
• Tractor Secondary Control Port Thread Size: 1/2 PTC in
• Mounting Type: Cab/Chassis
• Exhaust Port Type: Dust Shield
• Minimum Operating Temperature: -40 Deg. F
• Maximum Operating Temperature: 200 Deg. F
• Mounting Location: Cab/Chassis
• Vented: Yes
• Trailer Service Quick Release: Yes
• Service Line Shut Off Pressure: 10 psi
