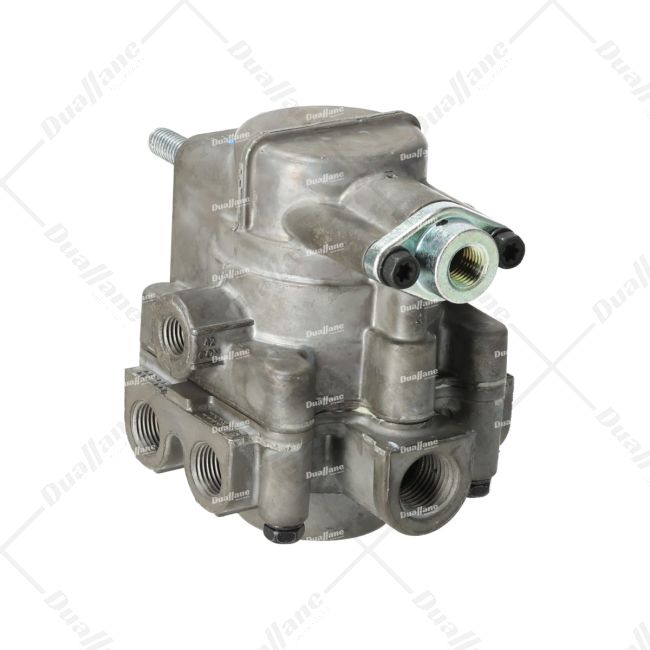

Bendix SR-7 Spring Brake Modulating Valve | K021557

Description

The BW K021557 Bendix SR-7 Spring Brake Modulating Valve is a vital component designed to enhance the safety and efficiency of brake systems in various vehicles. Weighing 1.41 kg, this valve is robust and built to last. It features an exhaust port with a dust shield, ensuring reliable performance even in challenging conditions. With a spring brake hold-off pressure of 107 psi, anti-compounding functionality and compliance with FMVSS 121 standards, it prioritizes spring brake operation, contributing to safer braking. The valve's compact dimensions, measuring 105 mm in length, 137 mm in width and 124 mm in height, make it suitable for various installation configurations. Multiple threaded ports including supply control balance and park control ports offer flexibility, and the 3/8-16 UNC-2A mounting thread simplifies installation. With a temperature range spanning from -40 Deg. F to 200 Deg. F, this Bendix SR-7 valve ensures consistent and reliable brake modulation across a wide range of operating conditions.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Weight: 1.41 kg
• Exhaust Port Type: Dust Shield
• Spring Brake Hold-Off Pressure: 107 psi
• Anti-Compounding: Yes
• Regulatory Compliance: FMVSS 121
• Exhaust Orientation: Exhaust Facing Down
• Length: 105 mm
• Width: 137 mm
• Height: 124 mm
• Supply Port Thread Size: 1/2-14 NPT in
• Control Port Thread Size: 1/4-18 NPT in
• Balance Port Thread Size: 1/4-18 NPT in
• Park Control Port Thread Size: 1/4-18 NPT in
• Mounting Thread Size: 3/8-16 UNC-2A in
• Delivery Port 1 Thread Size: 3/8-18 NPT in
• Delivery Port 2 Thread Size: 3/8-18 NPT in
• Delivery Port 3 Thread Size: 3/8-18 NPT in
• Delivery Port 4 Thread Size: 3/8-18 NPT in
• Mounting Stud Length: 0.94 in
• Minimum Operating Temperature: -40 Deg. F
• Maximum Operating Temperature: 200 Deg. F
