Bendix SR-5 Spring Brake Valve | K033223
Have a Question for Our Team?
Description

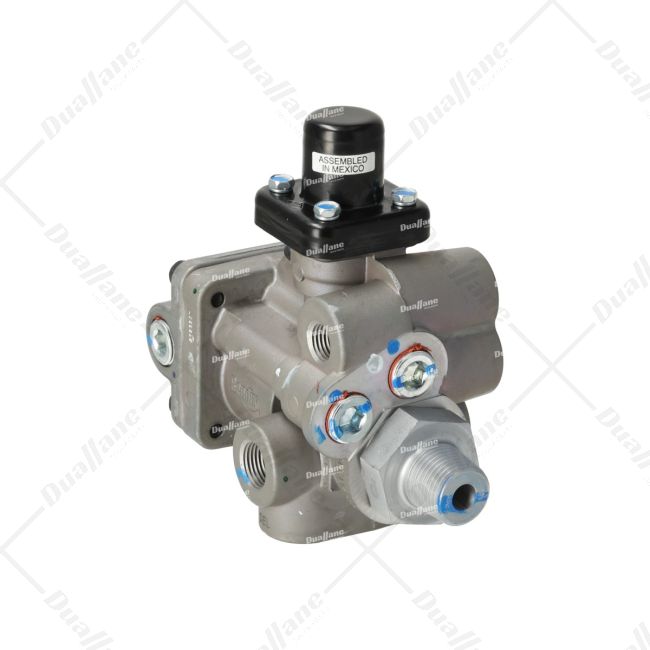

The Bendix SR-5 Spring Brake Valve, model number BW K033223, is a part of air brake systems that ensures the safe and efficient operation of spring brakes. It is designed to withstand a range of temperatures, with a minimum operating temperature of -40° F and a maximum operating temperature of 200° F. This valve includes port sizes for service reservoirs, trailer services, trailer supplies and spring brake reservoir supplies. These ports have NPT threads for installation. Measuring 154.69 mm in length, 76.20 mm in width and 142.24 mm in height, this spring brake valve complies with FMVSS 121 regulations. It offers anti-compounding functionality, making it a dependable choice for braking systems.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Minimum Operating Temperature: -40 Deg. F
- Maximum Operating Temperature: 200 Deg. F
- Length: 154.69 mm
- Width: 76.20 mm
- Height: 142.24 mm
- Service Reservoir Port Thread Size: 1/4-18 NPT in
- Trailer Service Port Thread Size: 1/4-18 NPT in
- Trailer Supply Port Thread Size: 1/4-18 NPT in
- Spring Brake Reservoir Supply Port Thread Size: 1/2-14 NPT in
- Delivery Port 1 Thread Size: 3/8-18 NPT in
- Delivery Port 2 Thread Size: 3/8-18 NPT in
- Delivery Port 3 Thread Size: 3/8-18 NPT in
- Delivery Port 4 Thread Size: 3/8-18 NPT in
- Close Pressure: 70 psi
- Anti-Compounding: Yes
- Brake Charging Priority: Spring Brake Priority
- Regulatory Compliance: FMVSS 121
| BENDIX | K033223 | |
|---|---|---|
| HALDEX | 65439X | |
| MERITOR | R955065439 | |
| PRIMA BRAKE COMPONENTS | AV065439 | |
| OTHER | K033223BXW, R955065439N, BXK033223, 65439RX |
| Manufacturer | Bendix |
|---|---|
| Shipping Length (in) | 8.00 |
| Shipping Width (in) | 8.00 |
| Shipping Height (in) | 6.00 |
| Returnable | Yes |
| Weight (lb) | 2.83 |
| Core Exchange | No |
