In Stock!

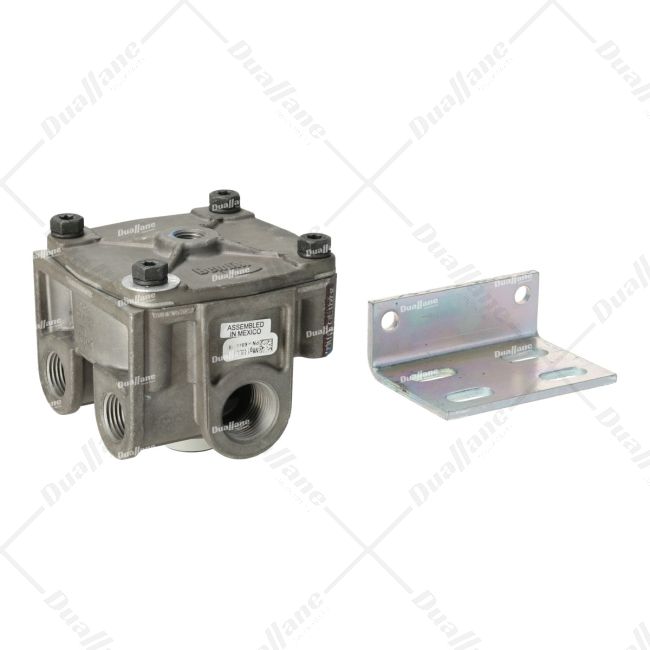

Bendix R-12 Relay Valve w/ Bracket | 103009N
SKU
BW 103009N
MPN
103009N
Special Price
$56.54
Regular Price
$70.67
Have a Question for Our Team?
Our Customer Service team is ready to help.
Call 1.877.DL.ORDER or Email Us
Monday - Friday 8 AM - 4:30 PM ET
Description
The Bendix R 12 Relay Valve with Bracket model BW 103009N is a part of air brake systems. Its primary purpose is to manage and distribute air pressure. With a crack pressure of 4 psi, this relay valve ensures regulation of pressure. It is equipped with two delivery ports and two supply ports along with a dust shield exhaust port for added safety. The dimensions of this relay valve are 102 mm in length, 102 mm in width and 100 mm in height. To simplify installation, it comes with a bracket. Moreover, it can operate reliably across a range of temperatures from -40° F to 200° F, thus making it suitable for various environmental conditions.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Crack Pressure: 4 psi
- Delivery Port Quantity: 2
- Number Of Supply Port: 2
- Exhaust Port Type: Dust Shield
- Minimum Operating Temperature: -40 Deg. F
- Maximum Operating Temperature: 200 Deg. F
- Length: 102 mm
- Width: 102 mm
- Height: 100 mm
- Mounting Dimension: 0.96 X 0.40 in
- Delivery Port Thread Size: 1/2 NPT in
- Control Port Thread Size: 1/4-18 NPT in
- Supply Port 1 Thread Size: 3/4-14 NPT in
- Delivery Port 1 Thread Size: 1/2-14 NPT in
- Delivery Port 2 Thread Size: 1/2-14 NPT in
- Supply Port 2 Thread Size: 3/4-14 NPT in
| ARVIN | R955103009N | |
|---|---|---|
| BENDIX | 103009N | |
| BEPCO | 103009 | |
| DAYTON PARTS | AV103009 | |
| HALDEX | 103009RX | |
| OTRO | TR103009, OTR28510 | |
| OTHER | 745103009N, 8235-R955103009N, BEN103009, 745-103009N, 104860N, 8235R955103009N |
| Shipping Weight (lb) | 4.00 |
|---|---|
| Manufacturer | Bendix |
| Shipping Length (in) | 8.00 |
| Shipping Width (in) | 8.00 |
| Shipping Height (in) | 6.00 |
| Returnable | Yes |
| Core Exchange | No |
