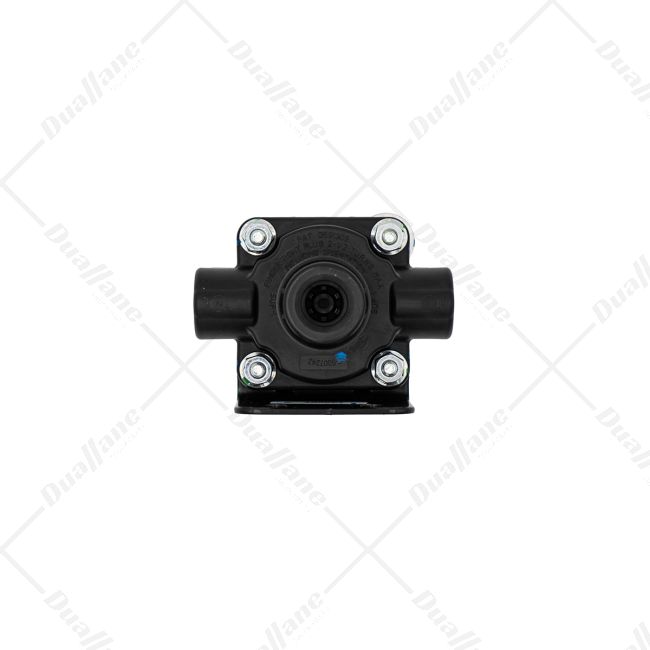

Bendix Quick Release Valve | 803074

Description

The Bendix Quick Release Valve known as the BW 803074 is specifically designed for air brake systems. It comes with features that ensure the brakes work efficiently. To quickly release the brakes, this valve has an exhaust port that releases compressed air. Additionally, it has the ability to sustain a desired pressure level which greatly contributes to brake stability. You can rely on this valve to operate effectively in temperature conditions ranging from 50° F to 200° F.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Exhaust Port Type: Open
• Zero Hysteresis: No
• Sustained Hold: Yes
• Minimum Operating Temperature: -50° F
• Maximum Operating Temperature: 200° F
• Differential Pressure: 2.00 to 4.50 psi
• Length: 76.71 mm
• Width: 101.60 mm
• Height: 2.25 mm
• Mounting Dimension: 0.34 X 0.75 in
• Mounting Length: 1.50 in
• Supply Port Thread Size: 3/8-18 NPT in
• Inlet Thread Size: 3/8-NPT in
• Outlet Thread Size: 3/8-PT in
• Delivery Port 1 Thread Size: 3/8-18 NPT in
• Delivery Port 2 Thread Size: 3/8-18 NPT in
