Bendix PP-5 Control Valve | 103353N

Description

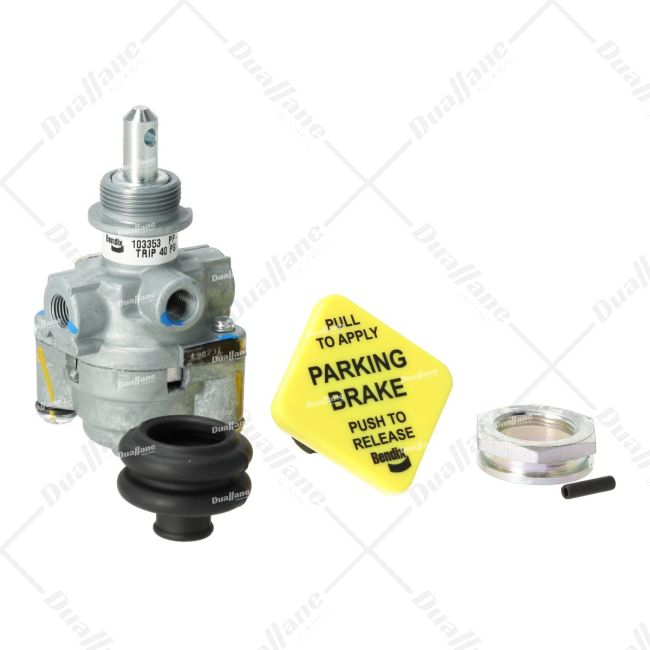

The Bendix 103353N PP-5 Control Valve is a crucial component in air brake systems, offering precise control over the parking brake. Its flipper-style actuator, featuring a diamond-shaped yellow button, allows for easy application and release of the parking brake. This valve is designed to operate flawlessly within a wide temperature range from -40 to 200 Deg. F, ensuring reliability in various conditions. Its automatic release pressure at 40 psi and pilot trip pressure at 18 psi guarantee efficient and safe brake control.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Automatic Release Pressure: 40 psi
• Actuator Style: Flipper
• Buttons Included: Yes
• Rubber Boot Included: Yes
• Mounting Nut Included: Yes
• Dial Included: No
• Button Text: Pull-to-Apply | Parking Brake | Push-to-Release
• Pilot Trip Pressure: 18 psi
• Exhaust Port Type: Vent
• Button Shape: Diamond
• Button Color: Yellow
• Working Temperature Range: -40.00 to +200.00 Deg. F
• Minimum Operating Temperature: -40 Deg. F
• Maximum Operating Temperature: 200 Deg. F
• Operating Temperature: -40 to 200 Deg. F
• Length: 99.06 mm
• Width: 50.80 mm
• Height: 45.72 mm
• Plunger Outer Diameter: 0.37 in
• Control Port Size: 1/8-27 NPT in
• Supply Port Thread Size: 1/8-27 NPT in
• Delivery Port Thread Size: 1/8-27 NPT in
• Control Port Thread Size: 1/8-27 NPT in
• Plunger Height: 1.12 in
• Mounting Thread Size: 7/8-20 UNEF-2A in
• Plunger Diameter: 0.37 in
