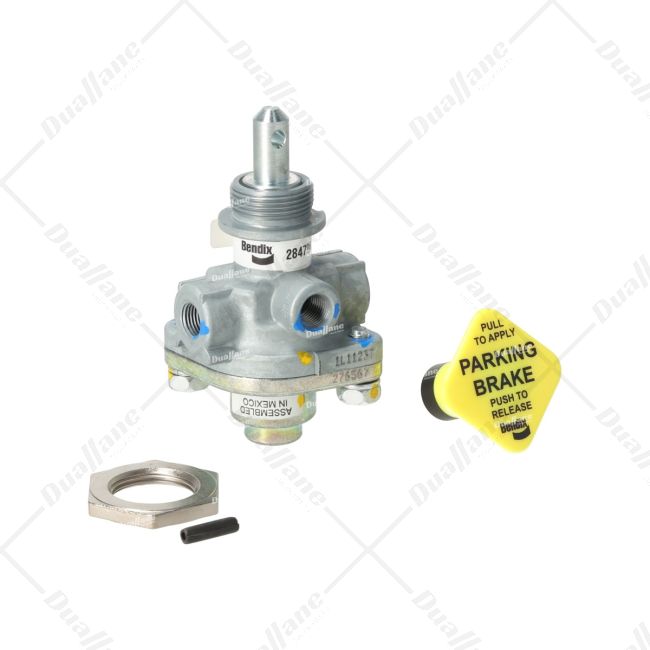

Bendix PP-1 Brake Control Valve | 284726N

SKU
BW 284726N
MPN
284726N
$69.42

Free Shipping on qualifying orders of $150 or more.Details

Have a Question for Our Team?

Our Customer Service team is ready to help. Call 1.877.DL.ORDER or Monday - Friday 8 AM - 4:30 PM ET

Description

The Bendix PP 1 Brake Control Valve model number BW 284726N plays a role in brake systems by managing and regulating brake pressure. This control valve ensures braking performance with a release pressure of 40 psi. It is designed with user features such as buttons in a diamond shape and vibrant yellow color along with a mounting nut for easy installation. With dimensions of 102.62 mm in length, 50.80 mm in width and 45.72 mm in height, this valve is suitable for brake configurations. It offers port sizes including inlet supply delivery and exhaust ports – all equipped with thread sizes of 1/8 27 NPT. The plunger height measures 1.59 inches while the plunger diameter is 0.37 inches. Moreover, it reliably operates within a temperature range spanning from -40° F to 200° F.

WarningWARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

  • Automatic Release Pressure: 40 psi
  • Buttons Included: Yes
  • Rubber Boot Included: No
  • Mounting Nut Included: Yes
  • Dial Included: No
  • Button Shape: Diamond
  • Button Color: Yellow
  • Minimum Operating Temperature: -40 Deg. F
  • Maximum Operating Temperature: 200 Deg. F
  • Length: 102.62 mm
  • Width: 50.80 mm
  • Height: 45.72 mm
  • Inlet Port Thread Size: 0.13 in
  • Supply Port Thread Size: 1/8-27 NPT in
  • Delivery Port Thread Size: 0.13 in
  • Exhaust Port Thread Size: 1/8-27 NPT in
  • Plunger Height: 1.59 in
  • Mounting Thread Size: 7/8-20 UNEF 2A in
  • Plunger Diameter: 0.37 in
  • Delivery Port 1 Thread Size: 1/8-27 NPT in
  • Delivery Port 2 Thread Size: 1/8-27 NPT in
Cross Reference
AURORA TRAILER HOLDINGS, LLC276566
BENDIX287600N, 284726N, 287325N
BEPCO276567, 284726
HALDEX276567X
OTROTR284726
POWER PRODUCTS276567P
S&S TRUCK PARTSS-A562
OTHER275176, 287417, SA562, 276567XC1, 48276567P, 745284726N, N284726, FVBW284726, BX276567XC1, BX276567X, BWBW284726, BW287417, BW284726, BW276567, BW276566, BW275176, BP284726, BP275176, BH275176, BEN284726, BE275176
More Information
Manufacturer Bendix
Shipping Length (in) 6.00
Shipping Width (in) 4.00
Shipping Height (in) 4.00
Returnable Yes
Weight (lb) 0.74
Core Exchange No
