Bendix MV-3 Dash Valve | 801360

Description

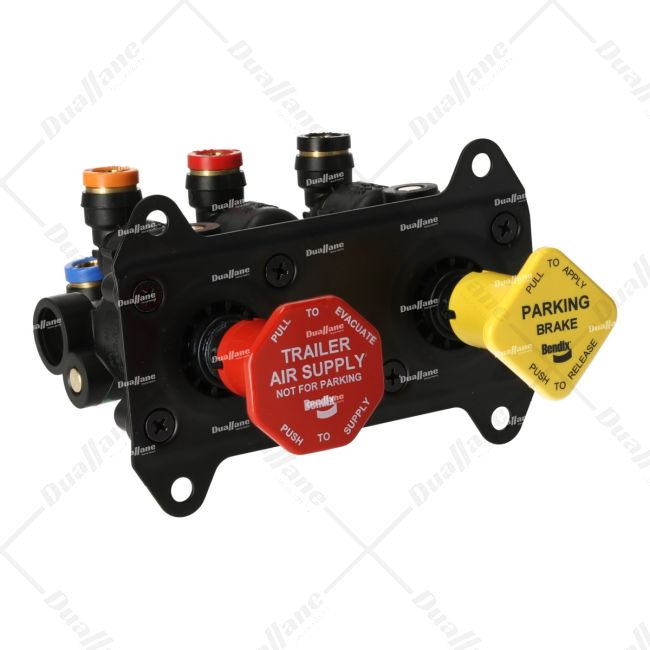

The BW 801360 Bendix MV-3 Dash Valve is a critical component in a vehicle's air brake system. This valve is equipped with control buttons and plays a key role in managing and regulating the vehicle's braking functions. It is designed to fit seamlessly into the vehicle dashboard, with dimensions measuring 169.16 mm in length, 136.22 mm in width and 91.95 mm in height. Featuring a compact mounting dimension and hole spacing, it is easy to install with a 3/8 PTC exhaust port and multiple 3/8 PTC supply and delivery ports for efficient air flow control. The MV-3 Dash Valve is designed to operate within a wide temperature range from -40° F to 200° F, ensuring precise and reliable control over tractor and trailer braking, contributing to the overall safety and performance of the vehicle.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Buttons Included: Yes
• Length: 169.16 mm
• Width: 136.22 mm
• Height: 91.95 mm
• Mounting Dimension: 0.28 in
• Mounting Hole Diameter: 0.25 in
• Hole Spacing Distance: 4.21 X 3.00 in
• Exhaust Port Thread Size: 3/8 PTC in
• Delivery 21 Port Thread Size: 3/8 PTC in
• Delivery 22 Port Thread Size: 3/8 PTC in
• Supply 11 Port Thread Size: 3/8 PTC in
• Supply 12 Port Thread Size: 3/8 PTC in
• Tractor Trip Pressure: 30 psi
• Trailer Trip Pressure: 35 psi
• Trailer Override Pressure: 25 psi
• Minimum Operating Temperature: -40 Deg. F
• Maximum Operating Temperature: 200 Deg. F
