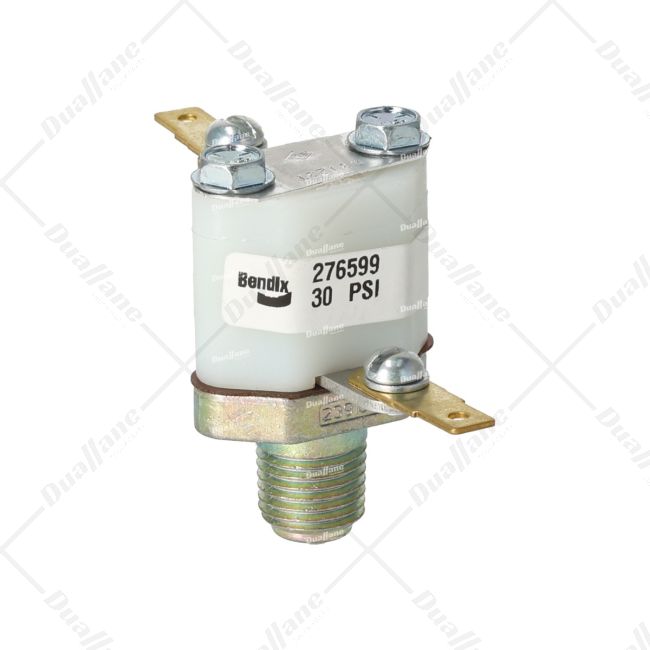

Bendix LP-3 Double Terminal Low Pressure Indicator | 276599N
Have a Question for Our Team?
Description
The Bendix LP-3 Double Terminal Low Pressure Indicator, model BW 276599N, is a part of vehicle systems as it provides pressure information. It operates efficiently within a temperature range of -40° F to 185° F and has a voltage rating of 12 V and an ampere rating of 10 A. This indicator is designed with two connections and has a close pressure value of 30 psi. Its dimensions are 70.61 mm in length, 32 mm in width and 49.28 mm in height. The thread sizes used are 1/4-inch for the indicator itself and 1/4 18 NPTF for the supply port thread size. By alerting drivers to low pressure conditions in the vehicle's systems, the Bendix LP-3 Low Pressure Indicator plays a role in ensuring reliable operation.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Voltage: 12 V
- Ampere Rating: 10 A
- Minimum Operating Temperature: -40 Deg. F
- Maximum Operating Temperature: 185 Deg. F
- Close Pressure: 30 psi
- Length: 70.61 mm
- Width: 32 mm
- Height: 49.28 mm
- Thread Size: 1/4 in
- Supply Port Thread Size: 1/4-18 NPTF in
- Terminal Quantity: 2
- Connector Terminal Type: 1/4 SAE Type 1A Terminal
| OTHER | 276599, 276599N, 060-276599N, 49000036, 62S1686, 223987, 224723, 2261469, 982918, 660015, 9S2168, D2X4953, BW276599, 10130539, 5102145000, 512145, SKB822035, AE41709, 5001313, D58973, 682207R91, BAN276599, BEN276599, BX276599, ZAC276599, S-D973, N19246, 641174, 33993, 25A0146, 704023803 |
|---|
| Manufacturer | Bendix |
|---|---|
| Shipping Length (in) | 6.00 |
| Shipping Width (in) | 4.00 |
| Shipping Height (in) | 4.00 |
| Returnable | Yes |
| Weight (lb) | 1.00 |
| Core Exchange | No |
