Description

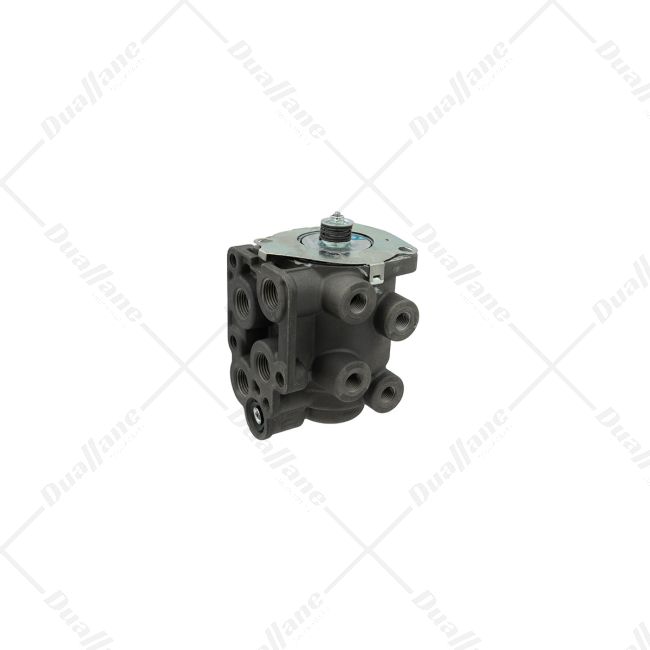

The Bendix E-7 Foot Brake Valve with the part number BW 288267N is a part of air brake systems designed primarily for trucks and heavy-duty vehicles. It is a valve weighing around 1.65 kg featuring a rubber spring and an exhaust port with a dust shield to ensure durability. This valve meets the performance and safety standards set by FMVSS 121 regulations. Its design incorporates ports, each with thread sizes allowing for precise connections within the air brake system. The dimensions of the valve are 102.87 mm in length, 110.74 mm in width and 147.32 mm in height, making it suitable for installation in certain vehicle configurations. With its ability to function effectively within temperatures ranging from -40° F to 200° F, this foot brake valve proves reliable under harsh environmental conditions. Overall, the BW 288267N stands as a trustworthy component for air brake systems used in heavy-duty vehicles.
WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov
Features
- Weight: 1.65 kg
- Spring Material: Rubber
- Valve Type: Foot Brake Valve
- Exhaust Port Type: Dust Shield
- Water Resistance: No
- Rubber Boot Included: No
- Regulatory Compliance: FMVSS 121
- Pedal Included: No
- Mounting Plate Included: No
- Port Configuration: Side/Rear
- Manifold Included: No
- Differential Pressure: 3 psi
- Length: 102.87 mm
- Width: 110.74 mm
- Height: 147.32 mm
- Valve Body Mounting Thread Size: 5/16-18 UNC-3B in
- Vehicle Mounting Thread Size: 3/8-16 UNC-3B in
- Delivery 21 Port 1 Thread Size: 3/8-18 NPT in
- Delivery 21 Port 2 Thread Size: 1/4-18 NPT in
- Delivery 21 Port 3 Thread Size: 1/2-14 NPT in
- Delivery 22 Port 2 Thread Size: 1/4-18 NPT in
- Delivery 22 Port 3 Thread Size: 1/2-14 NPT in
- Delivery 22 Port 1 Thread Size: 3/8-18 NPT in
- Supply 11 Port 2 Thread Size: 1/4-18 NPT in
- Supply 12 Port 3 Thread Size: 1/2-14 NPT in
- Supply 12 Port 1 Thread Size: 3/8-18 NPT in
- Supply 12 Port 4 Thread Size: 1/8-27 NPT in
- Supply 12 Port 2 Thread Size: 1/4-18 NPT in
- Supply 11 Port 3 Thread Size: 1/2-14 NPT in
- Supply 11 Port 1 Thread Size: 3/8-18 NPT in
- Minimum Operating Temperature: -40 Deg. F
- Maximum Operating Temperature: 200 Deg. F
| ATP | 101231 | |
|---|---|---|
| BENDIX | 288267N, OR288267, 288267R | |
| OTHER | BW101231, 288267X, S288267, BX288267X, BWS288267 |
| Manufacturer | Bendix |
|---|---|
| Shipping Length (in) | 8.00 |
| Shipping Width (in) | 8.00 |
| Shipping Height (in) | 6.00 |
| Returnable | Yes |
| Weight (lb) | 3.91 |
| Core Exchange | No |
