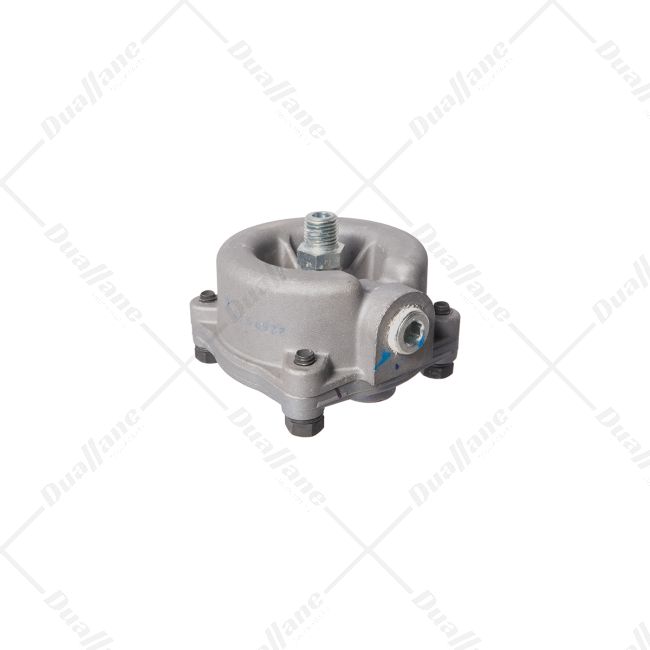

Bendix DV-2 Drain Valve | 281923N

Description

The Bendix DV-2 Drain Valve, model number BW 281923N, is a component found in automotive systems. Its primary function is to remove moisture and prevent it from accumulating. This drain valve can operate within a temperature range of -40° F to 100° F, ensuring performance in harsh conditions. Its compact design measuring 93.35 mm in length, 89.66 mm in width and 67.82 mm in height, allows for easy installation as it can be conveniently mounted on top. The valve features inlet and outlet threads with sizes of 1/4 NPT and 3/8 NPT. Additionally, it has side and top supply port threads of dimensions 3/8-18 NPT. It is worth noting that this particular model does not include a heater or thread sealant; nevertheless, its role in maintaining system efficiency and reliability by removing moisture cannot be understated.

WARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

• Minimum Operating Temperature: -40 Deg. F
• Maximum Operating Temperature: 100 Deg. F
• Mounting Type: Top Mount
• Heater: No
• Thread Sealant: No Sealant
• Length: 93.35 mm
• Width: 89.66 mm
• Height: 67.82 mm
• Inlet Thread Size: 1/4-NPT in
• Outlet Thread Size: 3/8-NPT in
• Side Supply Port Thread Size: 3/8-18 NPT in
• Top Supply Port Thread Size: 3/8-18 NPT in
