In Stock!

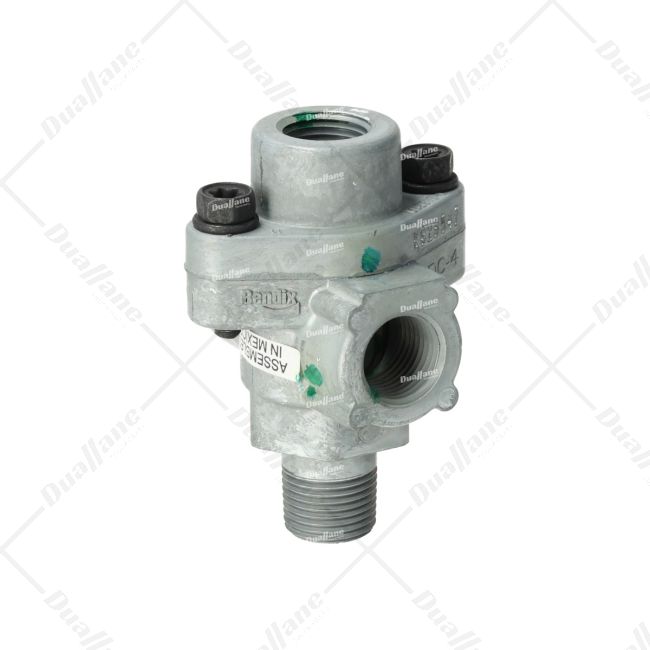

Bendix DC4 Double Check Valve | 280809N

SKU
BW 280809N
MPN
280809N
$40.43

Free Shipping on qualifying orders of $150 or more.Details

Have a Question for Our Team?

Our Customer Service team is ready to help. Call 1.877.DL.ORDER or Monday - Friday 8 AM - 4:30 PM ET

Description

The Bendix DC4 Double Check Valve, known as the BW 280809N, is a part of air brake systems. Its main purpose is to manage and regulate air pressure. This specific double check valve has measurements with a length of 76.20 mm, a width of 55.63 mm and a height of 50.80 mm. It includes four ports in total: two delivery ports and two supply ports, all equipped with 3/8-18 NPT thread sizes. The valve type is classified as a two-way check valve to ensure airflow control. It operates effectively in temperature ranges of handling extreme conditions from -40° F to 200° F. However, please note that it does not come with any thread sealant.

WarningWARNING: Cancer and Reproductive Harm - https://www.P65Warnings.ca.gov

Features

  • Length: 76.20 mm
  • Width: 55.63 mm
  • Height: 50.80 mm
  • Delivery Port Thread Size: 3/8 NPT in
  • Supply Port 1 Thread Size: 3/8-18 NPT in
  • Delivery Port 1 Thread Size: 3/8-18 NPT in
  • Delivery Port 2 Thread Size: 3/8-18 NPT in
  • Supply Port 2 Thread Size: 3/8-18 NPT in
  • Valve Type: 2 Way Check Valve
  • Port Quantity: 4
  • Delivery Port Quantity: 2
  • Number Of Supply Port: 2
  • Number Of Delivery Port: 2
  • Thread Sealant: No Sealant
  • Minimum Operating Temperature: -40 Deg. F
  • Maximum Operating Temperature: 200 Deg. F
Cross Reference
AUTOMANN170280809, 170.280809
BENDIX280809N
BEPCO280809
DAYTON PARTSAV280809
EDELMANN80809
HALDEX KN25110
MERITORR955280809N
PAI EM40710
PAI EXCEM40710
POWER PRODUCTS280809P, 278598P
S&S TRUCK PARTSS-16922
SKF25110
TECTRAN TV280809
WABCO RKN25110
OTHER278598, 27104141, BH278598, BE280809, BE278598, A42122, BX280809, S278598, P280809, MIKN25110, MDKN25110, MDA42122, S16922, BWS278598, BWBW280809, BW280809, BW278598, BP280809, BP278598, BH280809
More Information
Manufacturer Bendix
Shipping Length (in) 6.00
Shipping Width (in) 4.00
Shipping Height (in) 4.00
Returnable Yes
Weight (lb) 0.26
Core Exchange No
